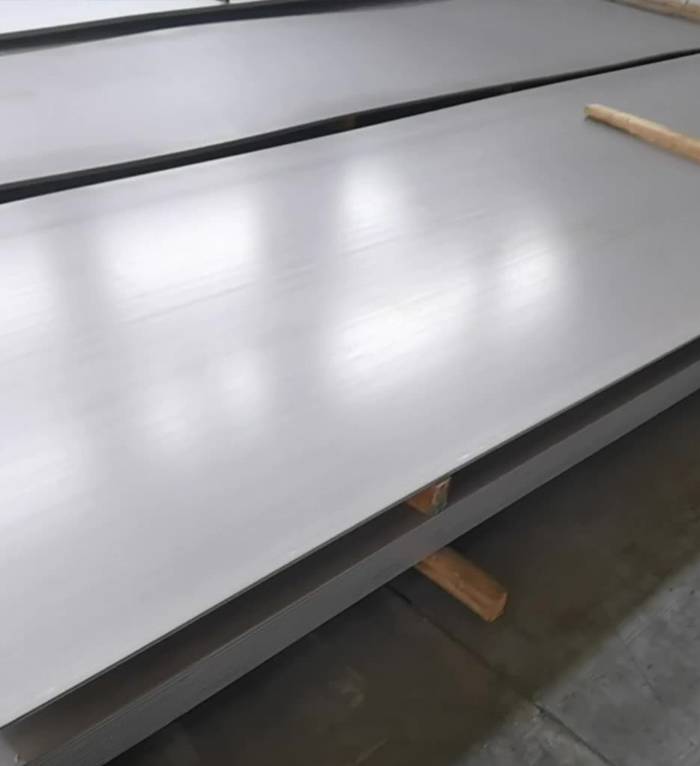

About BSPL Stainless Steel 304L Sheet
Bhavya Stainless Private Limited (BSPL) provides and sells a diverse selection of 304L Stainless Steel Sheets in a variety of sorts, forms, shapes, and requirements. We are a prominent producer, supplier, and exporter of SS 304L Sheets in the Indian and worldwide markets. In our contemporary manufacturing facility, we combine high-quality raw materials and cutting-edge gear to create Sheets that exceed our clients' expectations.
Grade 304L Stainless Steel Sheets are a lower carbon variant of 304 stainless steel that is often utilized in heavy gauge components. SS 304L Sheets are resistant to corrosion and oxidation in a broader variety of ambient conditions and corrosive media. UNS S30403 Stainless Steel Sheets offer excellent weldability and formability due to their low carbon content. Stainless Steel 304L Sheets are divided into two types: Hot Rolled 304L SS Sheets and Cold Rolled 304L SS Sheets. Hot and cold rolling enhances Sheet tensile strength, hardness, and toughness. In general, 304L stainless steel is resistant to corrosion. 304L stainless steel, like 304 stainless steel, has good resistance to grain boundary corrosion following welding or stress relief. This is the most cost-effective steel grade. As a result, the price of the 304L Stainless Steel Sheet is lower when compared to other grades of stainless steel and other metallic items in general. The material is available in two versions: low carbon and high carbon. Because they have less carbide precipitation and localized corrosion, 304L Sheets are ideal for welding applications.
Stainless steel 304L Sheet provides high corrosion resistance, ease of manufacture, and formability in a variety of media. SS 304L is also known as high alloy steel, and it may be easily welded using any form of fusion or welding method. SS 304L is appropriate for a variety of commercial and residential applications. Our high-quality SS UNS S30403 Sheets are utilized in a variety of sectors, including desalination plants, building construction equipment, food and chemical processing equipment, and various types of equipment.
| 304L Sheets Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
| 304L Sheets Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 304L Sheets Size Range | Cold rolled ASME SA240 Grade 304L Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 304L Stainless Steel Sheet 3.0–10.0 mm |
| 304L SS Sheets Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 304L Sheets Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 304L Sheets Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 304L Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 304L Sheets | EN 10258/ DIN 59381 EN 10151 ASME SA240 304L SS Sheet EN 10088 SA240 304L Sheet |
| Finish of SS 304L Sheets | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Stainless Steel 304L Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Material Equivalent Chart
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| FINISH | THICKNESS MM | MAX SHEET SIZE MM |
| Plain 2B | 0.9 | 2000 x 1000 |
| Bright | 0.9 | 2000 x 1000 |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
| SS 304L Sheet Price Per Kg | FOB Price:US $1800-2500/ Ton | 304L Stainless Steel Sheet Price In India |
| SS 304L Sheet Price List | FOB Price:US $1000-3000 / Ton | 304L Stainless Steel Sheet Price Philippines |
| SS 304L 1mm Sheet Price | FOB Price:US $1245-1986 / Ton | 304L Stainless Steel Sheet Prices Australia |
| 304L SS Sheet Price | FOB Price:US $1800-2300 / Ton | 304L Stainless Steel Sheet Price Malaysia |
| 304L Stainless Steel Sheet Price List | FOB Price:US $1000-4000 / Ton | 304L Stainless Steel Sheet Price In UAE |
| 16 Gauge Stainless Steel 304L Sheet Price | FOB Price:US $2400-3200 / Ton | 304L SS Sheet Price In Chennai |
| SS 304L Sheet Price | FOB Price:US $800-3500 / Ton | 304L Stainless Steel Sheet Price In Sri Lanka |
| 24 Gauge Stainless Steel 304L Sheet Price | FOB Price:US $1000-1500 / Ton | 304L Stainless Steel Sheet Prices Melbourne |
| 20 Gauge Stainless Steel 304L Sheet Price | FOB Price:US $900-4700 / Ton | 304L Stainless Steel Sheet Price In Saudi Arabia |
| 304L Stainless Steel Sheets 4x8 Prices | FOB Price:US $1000-3000 / Metric Ton | 304L Stainless Steel Sheet Prices Brisbane |
| SS 304L 4x8 Sheet Metal Prices | FOB Price:US $1000-3000 / Ton | 304L Stainless Steel Sheet Price UK |
| 3mm Stainless Steel 304L Sheet Price | FOB Price:US $1000-5000 / Ton | SS 304L Sheet Price Per Kg In Chennai |
| 2mm Stainless Steel 304L Sheet Price | FOB Price:US $500-2500 / Ton | 304L SS Sheet Price In Bangladesh |
| 18 Gauge Stainless Steel 304L Sheet Price | FOB Price:US $1140-3015 / Ton | 304L SS 304L Sheet Price Per Kg In Bangalore |
| Mirror Finish Stainless Steel 304L Sheet Price | FOB Price:US $1000-3500 / Ton | 304L SS 304L Sheet Price In Delhi |
| Perforated Stainless Steel 304L Sheet Price | FOB Price:US $1000-3000 / Ton | 304L SS 304L Sheet Price Per Kg In Ahmedabad |
| SS 304L Plain Sheet Price | FOB Price:US $1500-5000 / Ton | 304L SS Sheet Price In Sri Lanka |
| SS 304L Shim Sheet Price | FOB Price:US $999-4000 / Ton | 304L SS Sheet Price In Coimbatore |
| SS 304L Electropolished Sheet Price | FOB Price:US $2.1-8.8 / Piece | 304L SS Sheet Price In Hyderabad |
Stainless Steel Sheet Finish Types
| Patterned Finish | 2B Finish |
| No. 2B – Matte finish | No.8 – Mirror finish |
| Electro Polished Pla | Mirror Finish |
| No. 8 Finish | Brushed Finish |
| No. 4 – Brushed finish | 2R (Bright Annealed) Finish |
| No.4 Finish | 8K Finish |
| Polished Finishes | Mirror Polished |
| Thickness in. (mm) |
Width | |
| 36 (914.4) in. (mm) |
48 (1,219) in. (mm) |
|
| 0.017–0.030 (0.43–0.76) | 0.0015 (0.038) | 0.002 (0.051) |
| 0.031–0.041 (0.79–1.04) | 0.002 (0.051) | 0.003 (0.076) |
| 0.042–0.059 (1.1–1.5) | 0.003 (0.076) | 0.004 (0.10) |
| 0.060–0.073 (1.5–1.9) | 0.003 (0.076) | 0.0045 (0.11) |
| 0.074–0.084 (1.9–2.1) | 0.004 (0.10) | 0.0055 (0.14) |
| 0.085–0.099 (2.2–2.5) | 0.004 (0.10) | 0.006 (0.15) |
| 0.100–0.115 (2.5–2.9) | 0.005 (0.13) | 0.007 (0.18) |
| 0.116–0.131 (2.9–3.3) | 0.005 (0.13) | 0.0075 (0.19) |
| 0.132–0.146 (3.4–3.7) | 0.006 (0.15) | 0.009 (0.23) |
| 0.147–0.187 (3.7–4.7) | 0.007 (0.18) | 0.0105 (0.2 |
SS Sheet Weight Chart
| WEIGHT PER SS SHEETS : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | - | - | 1.44 |
| 0.20 | 3.20 | - | - | 1.60 |
| 0.22 | 3.52 | - | - | 1.76 |
| 0.24 | 3.84 | - | - | 1.92 |
| 0.27 | 4.32 | - | - | 2.16 |
| 0.28 | 4.48 | - | - | 2.24 |
| 0.32 | 5.12 | - | - | 2.56 |
| 0.38 | 6.08 | - | - | 3.04 |
| 0.44 | 7.04 | 11.00 | - | 3.52 |
| 0.50 | 8.00 | 12.50 | - | 4.00 |
| 0.56 | 8.96 | 14.00 | - | 4.48 |
| 0.63 | 10.08 | 15.75 | - | 5.04 |
| 0.75 | 12.00 | 18.75 | - | 6.00 |
| 0.88 | 14.08 | 22.00 | - | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Sheet Dimensions
No 2D Finish -No. 2B Finish - Annealed, Cold Rolled -No. 4 Finish -One Side Polished -No. 3 Finish - One Side Polished
| Width and Length, Gauge | per Sheet Est. Wt. | Lbs. per Sq Ft. Weight |
| 10GA (.135”) |
||
| 60 x 144* |
340.2 | 5.670 |
| 48 x 96 | 181.4 | |
| 36 x 120 | 170.1 | |
| 60 x 120* |
283.5 | |
| 48 x 120 | 226.8 | |
| 72 x 120* | 340.2 | |
| 7GA (.1874") |
||
| 48 x 120 | 314.8 | 7.871 |
| 48 x 96 | 251.9 | |
| 48 x 144 | 377.8 | |
| 12 Ga. (.105") | ||
| 36 x 120 | 132.3 | 4.410 |
| 36 x 96 | 105.8 | |
| 42 x 120 | 154.4 | |
| 72 x 144 | 317.5 | |
| 48 x 96 | 141.1 | |
| 36 x 144 | 158.8 | |
| 48 x 120 | 176.4 | |
| 60 x 96 | 176.4 | |
| 48 x 144 | 211.7 | |
| 60 x 144 | 264.6 | |
| 60 x 120 | 220.5 | |
| 72 x 120* | 264.6 | |
| 11 GA (.120") | ||
| 36 x 120 | 151.2 | 5.040 |
| 36 x 96 | 121.0 | |
| 36 x 144 | 181.4 | |
| 48 x 120 | 201.6 | |
| 48 x 96 | 161.3 | |
| 60 x 120 | 252.0 | |
| 48 x 144 | 241.9 | |
| 72 x 120* | 302.4 | |
| 60 x 144 | 302.4 | |
| 72 x 144* | 362.9 | |
| 14 Ga. (.075") | ||
| 36 x 96 | 75.60 | 3.150 |
| 30 x 120 | 78.75 | |
| 36 x 144 | 113.4 | |
| 36 x 120 | 94.50 | |
| 42 x 144 | 132.3 | |
| 48 x 96 | 100.8 | |
| 42 x 120 | 110.3 | |
| 72 x 144 | 226.8 | |
| 48 x 144 | 151.2 | |
| 48 x 120 | 126.0 | |
| 60 x 144 | 189.0 | |
| 60 x 120 | 157.5 | |
| 72 x 120 | 189.0 | |
| 13 Ga (.090") | ||
| 36 x 120 | 113.4 | 3.780 |
| 36 x 96 | 90.72 | |
| 48 x 120 | 151.2 | |
| 18 Ga. (.048") | ||
| 30 x 120 | 50.40 | 2.016 |
| 30 x 96 | 40.32 | |
| 36 x 120 | 60.48 | |
| 36 x 96 | 48.38 | |
| 42 x 120 | 70.56 | |
| 36 x 144 | 72.58 | |
| 48 x 120 | 80.64 | |
| 48 x 96 | 64.51 | |
| 60 x 120 | 100.8 | |
| 48 x 144 | 96.77 | |
| 60 x 144 | 121.0 | |
| 16 Ga. (.060") | ||
| 30 x 120 | 63.00 | 2.520 |
| 30 x 96 | 50.40 | |
| 36 x 120 | 75.60 | |
| 36 x 96 | 60.48 | |
| 42 x 120 | 88.20 | |
| 36 x 144 | 90.72 | |
| 48 x 120 | 100.8 | |
| 60 x 120 | 126.0 | |
| 48 x 96 | 80.64 | |
| 60 x 96 | 100.8 | |
| 48 x 144 | 121.0 | |
| 60 x 144 | 151.2 | |
| 20 Ga. (.036") | ||
| 30 x 120 | 37.80 | 1.512 |
| 30 x 96 | 30.24 | |
| 36 x 120 | 45.36 | |
| 36 x 96 | 36.29 | |
| 42 x 120 | 52.92 | |
| 36 x 144 | 54.43 | |
| 48 x 120 | 60.48 | |
| 48 x 96 | 48.38 | |
| 48 x 144 | 72.58 | |
| 26 Ga. (.018") | ||
| 30 x 120 | 18.90 | .7560 |
| 48 x 120 | 30.24 | |
| 36 x 120 | 22.68 | |
| 36 x 96 | 18.14 | |
| 30 x 96 | 15.12 | |
| 48 x 96 | 24.1 | |
| 19 Ga. (.042") | ||
| 36 x 120 | 52.92 | 1.764 |
| 24 Ga. (.024") | ||
| 30 x 120 | 25.20 | 1.008 |
| 30 x 96 | 20.16 | |
| 48 x 120 | 40.32 | |
| 36 x 120 | 30.24 | |
| 36 x 96 | 24.19 | |
| 48 x 96 | 32.26 | |
| 22 Ga. (.030") | ||
| 30 x 120 | 61.50 | 1.260 |
| 30 x 96 | 25.20 | |
| 36 x 120 | 37.80 | |
| 36 x 96 | 30.24 | |
| 48 x 96 | 40.32 | |
| 36 x 144 | 45.36 | |
| 48 x 120 | 50.40 | |
| 28 Ga. (.015") | ||
| 36 x 120 | 18.90 | .630 |
| 36 x 96 | 15.12 |
Steel Equivalent Grades Chart
| USA | France | Germany | Germany | Italy | Japan | Russia | Spain | Sweden | UK | European Union |
| AISI | AFNOR | DIN 17006 | W.N. 17007 | UNI | JIS | GOST | UNE | SIS | BSI | EURONORM |
| 304L | Z 2 CN 18-10 | X 2 CrNi 18 11 | 1.4306 | X 2 CrNi 1911 | SUS 304L | 03KH18N11 | X 2 CrNi 19-10 | 23 52 | 304S11 | X 3 CrNi 18 10 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Searches Related to Sheet | Sheets We Stock & Supplied | Country / Cities |
| 304L Stainless Steel Sheet Suppliers | 16 Gauge 304L Stainless Steel Sheet | Canada, Philippines, Saudi Arabia, Vietnam |
| Stainless Steel 304L Sheet Thickness | 304L Stainless Steel Cold Rolled Sheet | South Korea, Switzerland, France, Denmark |
| 304L Stainless Steel Sheet Metal Gauge Chart | 20 Gauge 304L Stainless Steel Sheet | United States, Nepal, Iran, Australia |
| Jindal SS 304L Sheet Weight Chart | 3mm 304L Stainless Steel Sheet | Thailand, Sweden, Malaysia, Bangladesh |
| 304L Stainless Steel Sheet Thickness Chart | 304L Stainless Steel Shim Sheets | Bahrain, Lithuania, Kuwait, United Kingdom |
| 2mm 304L Stainless Steel Sheet Price | 10 Gauge 304L Stainless Steel Sheet | Sri Lanka, Italy, China, Germany |
| Mirror Finish Stainless Steel Sheet Price | 3mm Stainless Steel TP304L Sheet | Russia, Brazil, Hong Kong, United Arab Emirates |
| TP304L Stainless Steel Sheet 2mm Price | Stainless Steel Tp304L 2B Finish Sheets | Tibet, Greece, South Africa, Afghanistan |
| Jindal Steel Sheet Price Per Kg | SS 304L Plain Sheets | Israel, Puerto Rico, Singapore, Mexico |
| 304L SS Sheet Thickness in MM | Electropolishing Stainless Steel 304L Sheets | Turkey, Ireland, Bolivia, Egypt |
| TP304L Stainless Steel Weight Per Square Meter | Brushed Stainless Steel 304L Sheets | Oman, Belarus, Yemen, Namibia |
| 22 Gauge Stainless Steel 304L Sheet Price | ASME SA240m Steel 304L Cold Rolled Sheets | Qatar, Algeria, Libya, Nigeria |
| SS 304L Sheet Hsn Code | Stainless Steel 304L HR Sheets | Japan, Poland, Austria, Bhutan |
| Jindal 304L Stainless Steel Sheet Dealer | Custom Stainless Steel 304L Sheets | Jaipur, Surat, Bangalore, Varanasi |
| S.S. 304L Sheet Price | 304L Stainless Steel Sheets Cut To Size | Nigeria, Portugal, Czech Republic, Croatia |
| 304L Stainless Steel Sheet Length | 304L Quality Stainless Steel Sheet | Jordan, Hungary, Finland, Spain | Stainless Steel 304L Sheet Weight Calculator | Stainless Steel 304L CR Sheets | Bengaluru, Mumbai, Chennai, Hyderabad |
| 3mm 304L Stainless Steel Sheet Price | Stainless Steel 304L BA Finish Sheets | Kolkata, Pune, New Delhi, Ahmedabad |
| SS 304L Sheet Rate | 304L Stainless Steel Custom Length Sheet | Coimbatore, Kannur Nagpur Vadodara |
| SS 304L Sheet Density | SUS 304L Sheets #4 Finish | Noida, Thane, Agra, Bhagalpur |
Industrial Applications Examples
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
Chemical
Lifting and mobile equipment
Wearing plates
Steel constructions
Framework structures
Truck frames
Aerospace
Crane booms
Shipbuilding
Heavy Equipment
Construction of bridges
Vehicles and transport equipment
Automotive
Power Generation
Stone or iron chutes
Machine building
Oil & Gas
Construction
Pylons and other architectural structures
Rail cars
Containers
