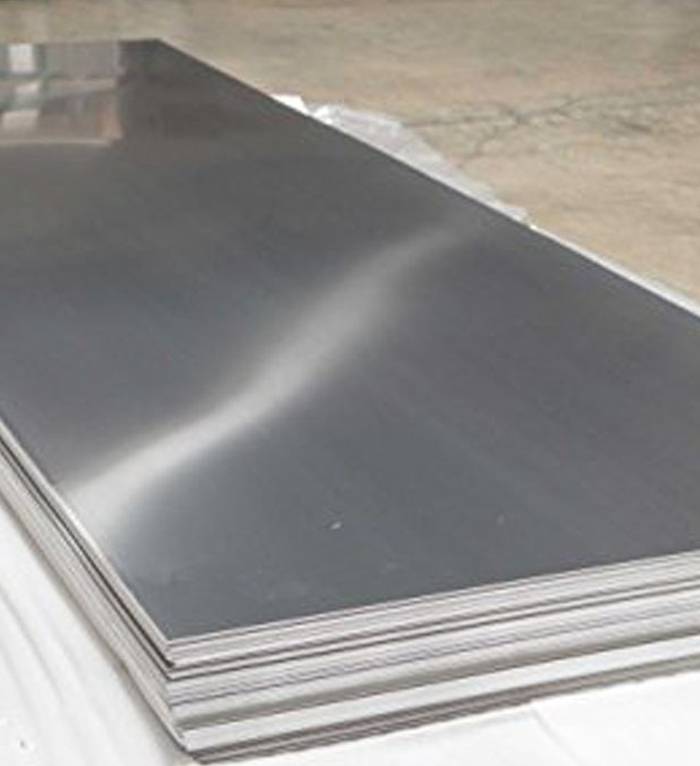

About BSPL Stainless Steel 410S Sheet
Bhavya Stainless Pvt. Ltd specializes in the production and distribution of high-quality Stainless Steel 410S Sheets. Grade 410S stainless steel sheets are a low-carbon, non-hardening variation of grade 410 stainless steel, a general-purpose martensitic stainless steel with 12% chromium. It's a variation of grade 410 stainless steel that can't be heat treated. The 410S stainless steel grade is annealed at 649-760 degrees Celsius (1200-1400 degrees Fahrenheit) and then chilled in the air. Great tensile strength, toughness, rugged construction, high durability, and flexibility are all features of our 410S Sheets.
Their dimension correctness is outstanding, and the exceptional surface finishes make it an attractive option. Other advantages include stress corrosion cracking resistance, crevice corrosion resistance, pitting resistance, general corrosion resistance, and oxidation resistance. Acids such as nitric and sulfuric acid are not a problem for these sheets. Stainless steel sheet 410S is utilized in a variety of sectors for a variety of applications. Aerospace constructions, medical instruments and gadgets, petrochemical applications, hand tools, and a variety of other applications use these sheets.
We prioritize various product tests, such as hardness testing, pitting resistance testing, flattening testing, flaring testing, mechanical testing, chemical testing, macro testing, micro testing, OMI testing, and IGC testing, to ensure product quality and delivery, as well as quality check certificates. All of this ensures that the product is free of any flaws that could compromise its quality. In order to construct the high quality, the superior quality of the product is used, ensuring that all application criteria are met. The utilization of new instruments and cutting-edge technologies is also yielding greater results.
The development and design of these sheets at Bhavya Stainless Pvt. Ltd. are done in such a way that they may be used for a variety of applications with ease. Our organization provides the product in a variety of sizes, dimensions, thicknesses, grades, and other characteristics to meet the needs of customers.
| 410S Sheets Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
| 410S Sheets Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 410S Sheets Size Range | Cold rolled ASME SA240 Grade 410S Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 410S Stainless Steel Sheet 3.0–10.0 mm |
| 410S SS Sheets Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 410S Sheets Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 410S Sheets Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 410S Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 410S Sheets | EN 10258/ DIN 59381 EN 10151 ASME SA240 410S SS Sheet EN 10088 SA240 410S Sheet |
| Finish of SS 410S Sheets | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Stainless Steel 410S Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Material Equivalent Chart
| Grade | WERKSTOFF NR. | UNS |
| SS 410S | 1.4000 | S41008 |
| FINISH | THICKNESS MM | MAX SHEET SIZE MM |
| Plain 2B | 0.9 | 2000 x 1000 |
| Bright | 0.9 | 2000 x 1000 |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
| SS 410S Sheet Price Per Kg | FOB Price:US $1800-2500/ Ton | 410S Stainless Steel Sheet Price In India |
| 410S SS Sheet Price | FOB Price:US $1800-2300 / Ton | 410S Stainless Steel Sheet Price Malaysia |
| SS 410S 1mm Sheet Price | FOB Price:US $1245-1986 / Ton | 410S Stainless Steel Sheet Prices Australia |
| SS 410S Sheet Price | FOB Price:US $800-3500 / Ton | 410S Stainless Steel Sheet Price In Sri Lanka |
| SS 410S Sheet Price List | FOB Price:US $1000-3000 / Ton | 410S Stainless Steel Sheet Price Philippines |
| 410S Stainless Steel Sheet Price List | FOB Price:US $1000-4000 / Ton | 410S Stainless Steel Sheet Price In UAE |
| 24 Gauge Stainless Steel 410S Sheet Price | FOB Price:US $1000-1500 / Ton | 410S Stainless Steel Sheet Prices Melbourne |
| 20 Gauge Stainless Steel 410S Sheet Price | FOB Price:US $900-4700 / Ton | 410S Stainless Steel Sheet Price In Saudi Arabia |
| 410S Stainless Steel Sheets 4x8 Prices | FOB Price:US $1000-5000 / Ton | 410S Stainless Steel Sheet Prices Brisbane |
| SS 410S 4x8 Sheet Metal Prices | FOB Price:US $1000-3000 / Ton | 410S Stainless Steel Sheet Price UK |
| 3mm Stainless Steel 410S Sheet Price | FOB Price:US $1000-3000 / Metric Ton | SS 410S Sheet Price Per Kg In Chennai |
| 16 Gauge Stainless Steel 410S Sheet Price | FOB Price:US $2400-3200 / Ton | 410S SS Sheet Price In Chennai |
| Perforated Stainless Steel 410S Sheet Price | FOB Price:US $1000-3000 / Ton | 410S SS 410S Sheet Price Per Kg In Ahmedabad |
| 18 Gauge Stainless Steel 410S Sheet Price | FOB Price:US $1140-3015 / Ton | SS 410S Sheet Price Per Kg In Bangalore |
| Mirror Finish Stainless Steel 410S Sheet Price | FOB Price:US $1000-3500 / Ton | 410S SS Sheet Price In Delhi |
| 2mm Stainless Steel 410S Sheet Price | FOB Price:US $500-2500 / Ton | 410S SS Sheet Price In Bangladesh |
| SS 410S Plain Sheet Price | FOB Price:US $2.1-8.8 / Piece | 410S SS Sheet Price In Sri Lanka |
| SS 410S Shim Sheet Price | FOB Price:US $999-4000 / Ton | 410S SS Sheet Price In Coimbatore |
| SS 410S Electropolished Sheet Price | FOB Price:US $1500-5000 / Ton | 410S SS Sheet Price In Hyderabad |
Stainless Steel Sheet Finish Types
| Patterned Finish | 2B Finish |
| No. 4 – Brushed finish | 2R (Bright Annealed) Finish |
| No. 2B – Matte finish | No.8 – Mirror finish |
| Electro Polished Pla | Mirror Finish |
| No. 8 Finish | Brushed Finish |
| No.4 Finish | 8K Finish |
| Polished Finishes | Mirror Polished |
| Thickness in. (mm) |
Width | |
| 36 (914.4) in. (mm) |
48 (1,219) in. (mm) |
|
| 0.017–0.030 (0.43–0.76) | 0.0015 (0.038) | 0.002 (0.051) |
| 0.031–0.041 (0.79–1.04) | 0.002 (0.051) | 0.003 (0.076) |
| 0.042–0.059 (1.1–1.5) | 0.003 (0.076) | 0.004 (0.10) |
| 0.060–0.073 (1.5–1.9) | 0.003 (0.076) | 0.0045 (0.11) |
| 0.074–0.084 (1.9–2.1) | 0.004 (0.10) | 0.0055 (0.14) |
| 0.085–0.099 (2.2–2.5) | 0.004 (0.10) | 0.006 (0.15) |
| 0.100–0.115 (2.5–2.9) | 0.005 (0.13) | 0.007 (0.18) |
| 0.116–0.131 (2.9–3.3) | 0.005 (0.13) | 0.0075 (0.19) |
| 0.132–0.146 (3.4–3.7) | 0.006 (0.15) | 0.009 (0.23) |
| 0.147–0.187 (3.7–4.7) | 0.007 (0.18) | 0.0105 (0.2 |
SS Sheet Weight Chart
| WEIGHT PER SS SHEETS : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | - | - | 1.44 |
| 0.20 | 3.20 | - | - | 1.60 |
| 0.22 | 3.52 | - | - | 1.76 |
| 0.24 | 3.84 | - | - | 1.92 |
| 0.27 | 4.32 | - | - | 2.16 |
| 0.28 | 4.48 | - | - | 2.24 |
| 0.32 | 5.12 | - | - | 2.56 |
| 0.38 | 6.08 | - | - | 3.04 |
| 0.44 | 7.04 | 11.00 | - | 3.52 |
| 0.50 | 8.00 | 12.50 | - | 4.00 |
| 0.56 | 8.96 | 14.00 | - | 4.48 |
| 0.63 | 10.08 | 15.75 | - | 5.04 |
| 0.75 | 12.00 | 18.75 | - | 6.00 |
| 0.88 | 14.08 | 22.00 | - | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Sheet Dimensions
No 2D Finish -No. 2B Finish - Annealed, Cold Rolled -No. 4 Finish -One Side Polished -No. 3 Finish - One Side Polished
| Width and Length, Gauge | per Sheet Est. Wt. | Lbs. per Sq Ft. Weight |
| 10GA (.135”) |
||
| 60 x 144* |
340.2 | 5.670 |
| 48 x 96 | 181.4 | |
| 36 x 120 | 170.1 | |
| 60 x 120* |
283.5 | |
| 48 x 120 | 226.8 | |
| 72 x 120* | 340.2 | |
| 7GA (.1874") |
||
| 48 x 120 | 314.8 | 7.871 |
| 48 x 96 | 251.9 | |
| 48 x 144 | 377.8 | |
| 12 Ga. (.105") | ||
| 36 x 120 | 132.3 | 4.410 |
| 36 x 96 | 105.8 | |
| 42 x 120 | 154.4 | |
| 72 x 144 | 317.5 | |
| 48 x 96 | 141.1 | |
| 36 x 144 | 158.8 | |
| 48 x 120 | 176.4 | |
| 60 x 96 | 176.4 | |
| 48 x 144 | 211.7 | |
| 60 x 144 | 264.6 | |
| 60 x 120 | 220.5 | |
| 72 x 120* | 264.6 | |
| 11 GA (.120") | ||
| 36 x 120 | 151.2 | 5.040 |
| 36 x 96 | 121.0 | |
| 36 x 144 | 181.4 | |
| 48 x 120 | 201.6 | |
| 48 x 96 | 161.3 | |
| 60 x 120 | 252.0 | |
| 48 x 144 | 241.9 | |
| 72 x 120* | 302.4 | |
| 60 x 144 | 302.4 | |
| 72 x 144* | 362.9 | |
| 14 Ga. (.075") | ||
| 36 x 96 | 75.60 | 3.150 |
| 30 x 120 | 78.75 | |
| 36 x 144 | 113.4 | |
| 36 x 120 | 94.50 | |
| 42 x 144 | 132.3 | |
| 48 x 96 | 100.8 | |
| 42 x 120 | 110.3 | |
| 72 x 144 | 226.8 | |
| 48 x 144 | 151.2 | |
| 48 x 120 | 126.0 | |
| 60 x 144 | 189.0 | |
| 60 x 120 | 157.5 | |
| 72 x 120 | 189.0 | |
| 13 Ga (.090") | ||
| 36 x 120 | 113.4 | 3.780 |
| 36 x 96 | 90.72 | |
| 48 x 120 | 151.2 | |
| 18 Ga. (.048") | ||
| 30 x 120 | 50.40 | 2.016 |
| 30 x 96 | 40.32 | |
| 36 x 120 | 60.48 | |
| 36 x 96 | 48.38 | |
| 42 x 120 | 70.56 | |
| 36 x 144 | 72.58 | |
| 48 x 120 | 80.64 | |
| 48 x 96 | 64.51 | |
| 60 x 120 | 100.8 | |
| 48 x 144 | 96.77 | |
| 60 x 144 | 121.0 | |
| 16 Ga. (.060") | ||
| 30 x 120 | 63.00 | 2.520 |
| 30 x 96 | 50.40 | |
| 36 x 120 | 75.60 | |
| 36 x 96 | 60.48 | |
| 42 x 120 | 88.20 | |
| 36 x 144 | 90.72 | |
| 48 x 120 | 100.8 | |
| 60 x 120 | 126.0 | |
| 48 x 96 | 80.64 | |
| 60 x 96 | 100.8 | |
| 48 x 144 | 121.0 | |
| 60 x 144 | 151.2 | |
| 20 Ga. (.036") | ||
| 30 x 120 | 37.80 | 1.512 |
| 30 x 96 | 30.24 | |
| 36 x 120 | 45.36 | |
| 36 x 96 | 36.29 | |
| 42 x 120 | 52.92 | |
| 36 x 144 | 54.43 | |
| 48 x 120 | 60.48 | |
| 48 x 96 | 48.38 | |
| 48 x 144 | 72.58 | |
| 26 Ga. (.018") | ||
| 30 x 120 | 18.90 | .7560 |
| 48 x 120 | 30.24 | |
| 36 x 120 | 22.68 | |
| 36 x 96 | 18.14 | |
| 30 x 96 | 15.12 | |
| 48 x 96 | 24.1 | |
| 19 Ga. (.042") | ||
| 36 x 120 | 52.92 | 1.764 |
| 24 Ga. (.024") | ||
| 30 x 120 | 25.20 | 1.008 |
| 30 x 96 | 20.16 | |
| 48 x 120 | 40.32 | |
| 36 x 120 | 30.24 | |
| 36 x 96 | 24.19 | |
| 48 x 96 | 32.26 | |
| 22 Ga. (.030") | ||
| 30 x 120 | 61.50 | 1.260 |
| 30 x 96 | 25.20 | |
| 36 x 120 | 37.80 | |
| 36 x 96 | 30.24 | |
| 48 x 96 | 40.32 | |
| 36 x 144 | 45.36 | |
| 48 x 120 | 50.40 | |
| 28 Ga. (.015") | ||
| 36 x 120 | 18.90 | .630 |
| 36 x 96 | 15.12 |
Steel Equivalent Grades Chart
| USA | France | Germany | Germany | Italy | Japan | Russia | Spain | Sweden | UK | European Union |
| AISI | AFNOR | DIN 17006 | W.N. 17007 | UNI | JIS | GOST | UNE | SIS | BSI | EURONORM |
| 410S | Z 6 CN 18-09 | X 5 CrNi 18 10 X 5 CrNi 18 12 | 1.4000 | X 5 CrNi 1810 | SUS 410S | 08KH18N10 06KH18N11 | X 6 CrNi 19-10 | 23 32 | 410SS15 410SS16 | X 6 CrNi 18 10 |
| Grade | C (max) | Si (max) | Mn | Cr | Ni | P(max) | S (max) | N (max) | Other Elements |
| SS 410s | 0.08 | 1.00 | 1.00 max | 11.50–13.50 | 0.6 max | 0.040 | 0.030 | - | - |
| U.T.S. N/mm2 Min | 0.2% Proof Stress / YS N/mm2 Min | % El (GL = 50 mm) Min | Hardness HRB max | Cold Bend |
| 415 | 205 | 22 | 89 | 180° 1 t |
| Searches Related to Sheet | Sheets We Stock & Supplied | Country / Cities |
| 410S Stainless Steel Sheet Suppliers | 16 Gauge 410S Stainless Steel Sheet | Canada, Philippines, Saudi Arabia, Vietnam |
| Stainless Steel 410S Sheet Thickness | 410S Stainless Steel Cold Rolled Sheet | South Korea, Switzerland, France, Denmark |
| Jindal SS 410S Sheet Weight Chart | 20 Gauge 410S Stainless Steel Sheet | United States, Nepal, Iran, Australia |
| Jindal Steel Sheet Price Per Kg | SS 410S Plain Sheets | Sri Lanka, Italy, China, Germany |
| 410S Stainless Steel Sheet Metal Gauge Chart | 3mm 410S Stainless Steel Sheet | Thailand, Sweden, Malaysia, Bangladesh |
| 410S Stainless Steel Sheet Thickness Chart | 410S Stainless Steel Shim Sheets | Bahrain, Lithuania, Kuwait, United Kingdom |
| 2mm 410S Stainless Steel Sheet Price | 10 Gauge 410S Stainless Steel Sheet | Israel, Puerto Rico, Singapore, Mexico |
| Mirror Finish Stainless Steel Sheet Price | 3mm Stainless Steel TP410S Sheet | Russia, Brazil, Hong Kong, United Arab Emirates |
| TP410S Stainless Steel Sheet 2mm Price | Stainless Steel Tp410S 2B Finish Sheets | Tibet, Greece, South Africa, Afghanistan |
| S.S. 410S Sheet Price | 410S Stainless Steel Sheets Cut To Size | Nigeria, Portugal, Czech Republic, Croatia |
| 410S SS Sheet Thickness in MM | Electropolishing Stainless Steel 410S Sheets | Turkey, Ireland, Bolivia, Egypt |
| TP410S Stainless Steel Weight Per Square Meter | Brushed Stainless Steel 410S Sheets | Oman, Belarus, Yemen, Namibia |
| 22 Gauge Stainless Steel 410S Sheet Price | ASME SA240m Steel 410S Cold Rolled Sheets | Qatar, Algeria, Libya, Nigeria |
| SS 410S Sheet Hsn Code | Stainless Steel 410S HR Sheets | Japan, Poland, Austria, Bhutan |
| 410S Stainless Steel Sheet Length | 410S Quality Stainless Steel Sheet | Jordan, Hungary, Finland, Spain | Stainless Steel 410S Sheet Weight Calculator | Stainless Steel 410S CR Sheets | Bengaluru, Mumbai, Chennai, Hyderabad |
| 3mm 410S Stainless Steel Sheet Price | Stainless Steel 410S BA Finish Sheets | Kolkata, Pune, New Delhi, Ahmedabad |
| Jindal 410S Stainless Steel Sheet Dealer | Custom Stainless Steel 410S Sheets | Jaipur, Surat, Bangalore, Varanasi |
| SS 410S Sheet Rate | 410S Stainless Steel Custom Length Sheet | Coimbatore, Kannur Nagpur Vadodara |
| SS 410S Sheet Density | SUS 410S Sheets #4 Finish | Noida, Thane, Agra, Bhagalpur |
Industrial Applications Examples
Shipbuilding
Power Generation
Stone or iron chutes
Construction of bridges
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
Steel constructions
Lifting and mobile equipment
Truck frames
Oil & Gas
Containers
Aerospace
Framework structures
Machine building
Automotive
Crane booms
Vehicles and transport equipment
Chemical
Wearing plates
Construction
Rail cars
Heavy Equipment
Pylons and other architectural structures
