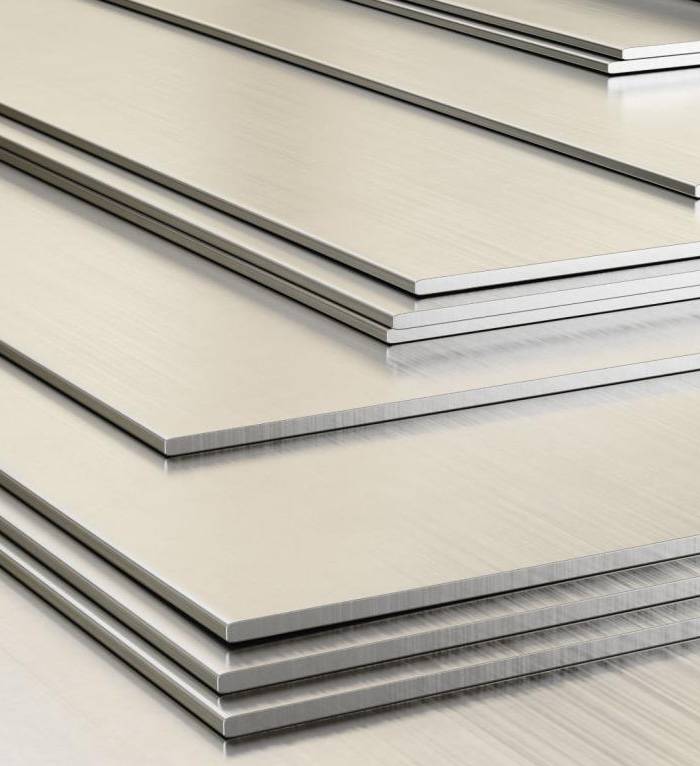

About BSPL Stainless Steel 430 Sheet
Bhavya Stainless Private Limited (BSPL) is a well-known locally and globally supplier, manufacturer, and distributor of high-quality 430 Stainless Steel Sheets. What sets us apart from the competition is our use of pure and high-quality raw materials, efficient machine, and skilled staff members, as well as our desire to total client service.
The features of Stainless Steel 430 sheets:
Stainless Steel 430 Sheets are non-hardened steel sheets with 17% chromium and 0.5% nickel that are categorised as ferrite steels. Even though it is flexible, it cannot be hardened. As a consequence, stainless steel 430 Sheets are widely used in industrial applications and in high demand. The corrosion behavior and formability of stainless steel 430 Sheets are well recognised. Because of their exceptional quality, UNS S43000 SS Sheets are frequently used in chemical applications. Before any form of welding, Stainless Steel 430 Sheets must be pre-heated.
In some circumstances, post-weld annealing can increase welding strength. We offer Hot Rolled Stainless Steel 430 Sheets and Cold Rolled Stainless Steel 430 Sheets in a variety of sizes in stock. All Stainless Steel UNS S43000 Sheets are manufactured in accordance with international standards. SS 430 Sheets can be used in mildly corrosive conditions since they are heat resistant. Because of its exceptional resistance to Nitric acid attacks, the SS 430 Sheet is suited for use in certain chemical treatments. Stainless steel 430 Sheets (DIN 1.4016) harden excessively during cold work when annealed and become Ductile. SS 430 Sheets are formed using a variety of roll forming or moderate stretch-bending operations, as well as more traditional drawing and bending techniques.
What are the applications for Stainless Steel 430 Sheets?
1) SS 430 Sheets are utilised in a variety of industries and have a wide range of
applications. Dishwasher linings and refrigerator cabinet panels are made from SS
430 Sheets.
2) The majority of our high-quality SS 430 Sheets are sold to the automobile, food
processing, air conditioning, pharmaceutical, and other industries.
| 430 Sheets Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
| 430 Sheets Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 430 Sheets Size Range | Cold rolled ASME SA240 Grade 430 Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 430 Stainless Steel Sheet 3.0–10.0 mm |
| 430 SS Sheets Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 430 Sheets Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 430 Sheets Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 430 Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 430 Sheets | EN 10258/ DIN 59381 EN 10151 ASME SA240 430 SS Sheet EN 10088 SA240 430 Sheet |
| Finish of SS 430 Sheets | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Stainless Steel 430 Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Material Equivalent Chart
| Grade | WERKSTOFF NR. | AISI | UNS | AFNOR | BS | IS | JIS | SIS | UNI |
| SS 430 | 1.4016 | 430 | S43000 | Z 8 C 17 | 430 S 17 | X10 Cr 17 | SUS 430 | 142320 | X12Cr17C |
| FINISH | THICKNESS MM | MAX SHEET SIZE MM |
| Bright | 0.9 | 2000 x 1000 |
| Plain 2B | 0.9 | 2000 x 1000 |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 |
| SS 430 Sheet Price Per Kg | FOB Price:US $1800-2500/ Ton | 430 Stainless Steel Sheet Price In India |
| SS 430 1mm Sheet Price | FOB Price:US $1245-1986 / Ton | 430 Stainless Steel Sheet Prices Australia |
| SS 430 Sheet Price List | FOB Price:US $1000-3000 / Ton | 430 Stainless Steel Sheet Price Philippines |
| 430 SS Sheet Price | FOB Price:US $1800-2300 / Ton | 430 Stainless Steel Sheet Price Malaysia |
| SS 430 Sheet Price | FOB Price:US $800-3500 / Ton | 430 Stainless Steel Sheet Price In Sri Lanka |
| 430 Stainless Steel Sheet Price List | FOB Price:US $1000-4000 / Ton | 430 Stainless Steel Sheet Price In UAE |
| 20 Gauge Stainless Steel 430 Sheet Price | FOB Price:US $900-4700 / Ton | 430 Stainless Steel Sheet Price In Saudi Arabia |
| 430 Stainless Steel Sheets 4x8 Prices | FOB Price:US $1000-5000 / Ton | 430 Stainless Steel Sheet Prices Brisbane |
| 24 Gauge Stainless Steel 430 Sheet Price | FOB Price:US $1000-1500 / Ton | 430 Stainless Steel Sheet Prices Melbourne |
| 3mm Stainless Steel 430 Sheet Price | FOB Price:US $1000-3000 / Metric Ton | SS 430 Sheet Price Per Kg In Chennai |
| SS 430 4x8 Sheet Metal Prices | FOB Price:US $1000-3000 / Ton | 430 Stainless Steel Sheet Price UK |
| 16 Gauge Stainless Steel 430 Sheet Price | FOB Price:US $2400-3200 / Ton | 430 SS Sheet Price In Chennai |
| 18 Gauge Stainless Steel 430 Sheet Price | FOB Price:US $1140-3015 / Ton | 430 SS 430 Sheet Price Per Kg In Bangalore |
| Mirror Finish Stainless Steel 430 Sheet Price | FOB Price:US $1000-3500 / Ton | 430 SS 430 Sheet Price In Delhi |
| 2mm Stainless Steel 430 Sheet Price | FOB Price:US $500-2500 / Ton | 430 SS Sheet Price In Bangladesh |
| Perforated Stainless Steel 430 Sheet Price | FOB Price:US $1000-3000 / Ton | 430 SS 430 Sheet Price Per Kg In Ahmedabad |
| SS 430 Shim Sheet Price | FOB Price:US $999-4000 / Ton | 430 SS Sheet Price In Coimbatore |
| SS 430 Plain Sheet Price | FOB Price:US $2.1-8.8 / Piece | 430 SS Sheet Price In Sri Lanka |
| SS 430 Electropolished Sheet Price | FOB Price:US $1500-5000 / Ton | 430 SS Sheet Price In Hyderabad |
Stainless Steel Sheet Finish Types
| Electro Polished Pla | Mirror Finish |
| Patterned Finish | 2B Finish |
| No. 2B – Matte finish | No.8 – Mirror finish |
| No.4 Finish | 8K Finish |
| No. 8 Finish | Brushed Finish |
| No. 4 – Brushed finish | 2R (Bright Annealed) Finish |
| Polished Finishes | Mirror Polished |
| Thickness in. (mm) |
Width | |
| 36 (914.4) in. (mm) |
48 (1,219) in. (mm) |
|
| 0.017–0.030 (0.43–0.76) | 0.0015 (0.038) | 0.002 (0.051) |
| 0.031–0.041 (0.79–1.04) | 0.002 (0.051) | 0.003 (0.076) |
| 0.042–0.059 (1.1–1.5) | 0.003 (0.076) | 0.004 (0.10) |
| 0.060–0.073 (1.5–1.9) | 0.003 (0.076) | 0.0045 (0.11) |
| 0.074–0.084 (1.9–2.1) | 0.004 (0.10) | 0.0055 (0.14) |
| 0.085–0.099 (2.2–2.5) | 0.004 (0.10) | 0.006 (0.15) |
| 0.100–0.115 (2.5–2.9) | 0.005 (0.13) | 0.007 (0.18) |
| 0.116–0.131 (2.9–3.3) | 0.005 (0.13) | 0.0075 (0.19) |
| 0.132–0.146 (3.4–3.7) | 0.006 (0.15) | 0.009 (0.23) |
| 0.147–0.187 (3.7–4.7) | 0.007 (0.18) | 0.0105 (0.2 |
SS Sheet Weight Chart
| WEIGHT PER SS SHEETS : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | - | - | 1.44 |
| 0.20 | 3.20 | - | - | 1.60 |
| 0.22 | 3.52 | - | - | 1.76 |
| 0.24 | 3.84 | - | - | 1.92 |
| 0.27 | 4.32 | - | - | 2.16 |
| 0.28 | 4.48 | - | - | 2.24 |
| 0.32 | 5.12 | - | - | 2.56 |
| 0.38 | 6.08 | - | - | 3.04 |
| 0.44 | 7.04 | 11.00 | - | 3.52 |
| 0.50 | 8.00 | 12.50 | - | 4.00 |
| 0.56 | 8.96 | 14.00 | - | 4.48 |
| 0.63 | 10.08 | 15.75 | - | 5.04 |
| 0.75 | 12.00 | 18.75 | - | 6.00 |
| 0.88 | 14.08 | 22.00 | - | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Sheet Dimensions
No 2D Finish -No. 2B Finish - Annealed, Cold Rolled -No. 4 Finish -One Side Polished -No. 3 Finish - One Side Polished
| Width and Length, Gauge | per Sheet Est. Wt. | Lbs. per Sq Ft. Weight |
| 10GA (.135”) |
||
| 60 x 144* |
340.2 | 5.670 |
| 48 x 96 | 181.4 | |
| 36 x 120 | 170.1 | |
| 60 x 120* |
283.5 | |
| 48 x 120 | 226.8 | |
| 72 x 120* | 340.2 | |
| 7GA (.1874") |
||
| 48 x 120 | 314.8 | 7.871 |
| 48 x 96 | 251.9 | |
| 48 x 144 | 377.8 | |
| 12 Ga. (.105") | ||
| 36 x 120 | 132.3 | 4.410 |
| 36 x 96 | 105.8 | |
| 42 x 120 | 154.4 | |
| 72 x 144 | 317.5 | |
| 48 x 96 | 141.1 | |
| 36 x 144 | 158.8 | |
| 48 x 120 | 176.4 | |
| 60 x 96 | 176.4 | |
| 48 x 144 | 211.7 | |
| 60 x 144 | 264.6 | |
| 60 x 120 | 220.5 | |
| 72 x 120* | 264.6 | |
| 11 GA (.120") | ||
| 36 x 120 | 151.2 | 5.040 |
| 36 x 96 | 121.0 | |
| 36 x 144 | 181.4 | |
| 48 x 120 | 201.6 | |
| 48 x 96 | 161.3 | |
| 60 x 120 | 252.0 | |
| 48 x 144 | 241.9 | |
| 72 x 120* | 302.4 | |
| 60 x 144 | 302.4 | |
| 72 x 144* | 362.9 | |
| 14 Ga. (.075") | ||
| 36 x 96 | 75.60 | 3.150 |
| 30 x 120 | 78.75 | |
| 36 x 144 | 113.4 | |
| 36 x 120 | 94.50 | |
| 42 x 144 | 132.3 | |
| 48 x 96 | 100.8 | |
| 42 x 120 | 110.3 | |
| 72 x 144 | 226.8 | |
| 48 x 144 | 151.2 | |
| 48 x 120 | 126.0 | |
| 60 x 144 | 189.0 | |
| 60 x 120 | 157.5 | |
| 72 x 120 | 189.0 | |
| 13 Ga (.090") | ||
| 36 x 120 | 113.4 | 3.780 |
| 36 x 96 | 90.72 | |
| 48 x 120 | 151.2 | |
| 18 Ga. (.048") | ||
| 30 x 120 | 50.40 | 2.016 |
| 30 x 96 | 40.32 | |
| 36 x 120 | 60.48 | |
| 36 x 96 | 48.38 | |
| 42 x 120 | 70.56 | |
| 36 x 144 | 72.58 | |
| 48 x 120 | 80.64 | |
| 48 x 96 | 64.51 | |
| 60 x 120 | 100.8 | |
| 48 x 144 | 96.77 | |
| 60 x 144 | 121.0 | |
| 16 Ga. (.060") | ||
| 30 x 120 | 63.00 | 2.520 |
| 30 x 96 | 50.40 | |
| 36 x 120 | 75.60 | |
| 36 x 96 | 60.48 | |
| 42 x 120 | 88.20 | |
| 36 x 144 | 90.72 | |
| 48 x 120 | 100.8 | |
| 60 x 120 | 126.0 | |
| 48 x 96 | 80.64 | |
| 60 x 96 | 100.8 | |
| 48 x 144 | 121.0 | |
| 60 x 144 | 151.2 | |
| 20 Ga. (.036") | ||
| 30 x 120 | 37.80 | 1.512 |
| 30 x 96 | 30.24 | |
| 36 x 120 | 45.36 | |
| 36 x 96 | 36.29 | |
| 42 x 120 | 52.92 | |
| 36 x 144 | 54.43 | |
| 48 x 120 | 60.48 | |
| 48 x 96 | 48.38 | |
| 48 x 144 | 72.58 | |
| 26 Ga. (.018") | ||
| 30 x 120 | 18.90 | .7560 |
| 48 x 120 | 30.24 | |
| 36 x 120 | 22.68 | |
| 36 x 96 | 18.14 | |
| 30 x 96 | 15.12 | |
| 48 x 96 | 24.1 | |
| 19 Ga. (.042") | ||
| 36 x 120 | 52.92 | 1.764 |
| 24 Ga. (.024") | ||
| 30 x 120 | 25.20 | 1.008 |
| 30 x 96 | 20.16 | |
| 48 x 120 | 40.32 | |
| 36 x 120 | 30.24 | |
| 36 x 96 | 24.19 | |
| 48 x 96 | 32.26 | |
| 22 Ga. (.030") | ||
| 30 x 120 | 61.50 | 1.260 |
| 30 x 96 | 25.20 | |
| 36 x 120 | 37.80 | |
| 36 x 96 | 30.24 | |
| 48 x 96 | 40.32 | |
| 36 x 144 | 45.36 | |
| 48 x 120 | 50.40 | |
| 28 Ga. (.015") | ||
| 36 x 120 | 18.90 | .630 |
| 36 x 96 | 15.12 |
Steel Equivalent Grades Chart
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 430 | 1.4016 | S43000 | SUS 430 | - | - | - | - |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 430 | 0.12 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 16.00-18.00 | - | 0.75 max | - |
| Grades | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
| SS 430 | 450 | 205 | 22 | 89 | 183 |
| Searches Related to Sheet | Sheets We Stock & Supplied | Country / Cities |
| Stainless Steel 430 Sheet Thickness | 430 Stainless Steel Cold Rolled Sheet | South Korea, Switzerland, France, Denmark |
| 430 Stainless Steel Sheet Suppliers | 16 Gauge 430 Stainless Steel Sheet | Canada, Philippines, Saudi Arabia, Vietnam |
| 430 Stainless Steel Sheet Metal Gauge Chart | 3mm 430 Stainless Steel Sheet | Thailand, Sweden, Malaysia, Bangladesh |
| 430 Stainless Steel Sheet Thickness Chart | 430 Stainless Steel Shim Sheets | Bahrain, Lithuania, Kuwait, United Kingdom |
| Jindal SS 430 Sheet Weight Chart | 20 Gauge 430 Stainless Steel Sheet | United States, Nepal, Iran, Australia |
| 2mm 430 Stainless Steel Sheet Price | 10 Gauge 430 Stainless Steel Sheet | Israel, Puerto Rico, Singapore, Mexico |
| TP430 Stainless Steel Sheet 2mm Price | Stainless Steel Tp430 2B Finish Sheets | Tibet, Greece, South Africa, Afghanistan |
| Jindal Steel Sheet Price Per Kg | SS 430 Plain Sheets | Sri Lanka, Italy, China, Germany |
| Mirror Finish Stainless Steel Sheet Price | 3mm Stainless Steel TP430 Sheet | Russia, Brazil, Hong Kong, United Arab Emirates |
| 430 SS Sheet Thickness in MM | Electropolishing Stainless Steel 430 Sheets | Turkey, Ireland, Bolivia, Egypt |
| 22 Gauge Stainless Steel 430 Sheet Price | ASME SA240m Steel 430 Cold Rolled Sheets | Qatar, Algeria, Libya, Nigeria |
| SS 430 Sheet Hsn Code | Stainless Steel 430 HR Sheets | Japan, Poland, Austria, Bhutan |
| TP430 Stainless Steel Weight Per Square Meter | Brushed Stainless Steel 430 Sheets | Oman, Belarus, Yemen, Namibia |
| S.S. 430 Sheet Price | 430 Stainless Steel Sheets Cut To Size | Nigeria, Portugal, Czech Republic, Croatia |
| 430 Stainless Steel Sheet Length | 430 Quality Stainless Steel Sheet | Jordan, Hungary, Finland, Spain |
| 3mm 430 Stainless Steel Sheet Price | Stainless Steel 430 BA Finish Sheets | Kolkata, Pune, New Delhi, Ahmedabad |
| Stainless Steel 430 Sheet Weight Calculator | Stainless Steel 430 CR Sheets | Bengaluru, Mumbai, Chennai, Hyderabad |
| SS 430 Sheet Rate | 430 Stainless Steel Custom Length Sheet | Coimbatore, Kannur Nagpur Vadodara |
| Jindal 430 Stainless Steel Sheet Dealer | Custom Stainless Steel 430 Sheets | Jaipur, Surat, Bangalore, Varanasi |
| SS 430 Sheet Density | SUS 430 Sheets #4 Finish | Noida, Thane, Agra, Bhagalpur |
Industrial Applications Examples
Containers
Construction of bridges
Wearing plates
Framework structures
Oil & Gas
Aerospace
Steel constructions
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
Rail cars
Power Generation
Machine building
Lifting and mobile equipment
Heavy Equipment
Vehicles and transport equipment
Automotive
Shipbuilding
Chemical
Crane booms
Construction
Truck frames
Stone or iron chutes
Pylons and other architectural structures
Our Products
Sheets
Stainless Steel 202 2B Matt PVC Sheets
Authorized Dealer of Jindal Stainless Steel Sheet
Quick Contact
