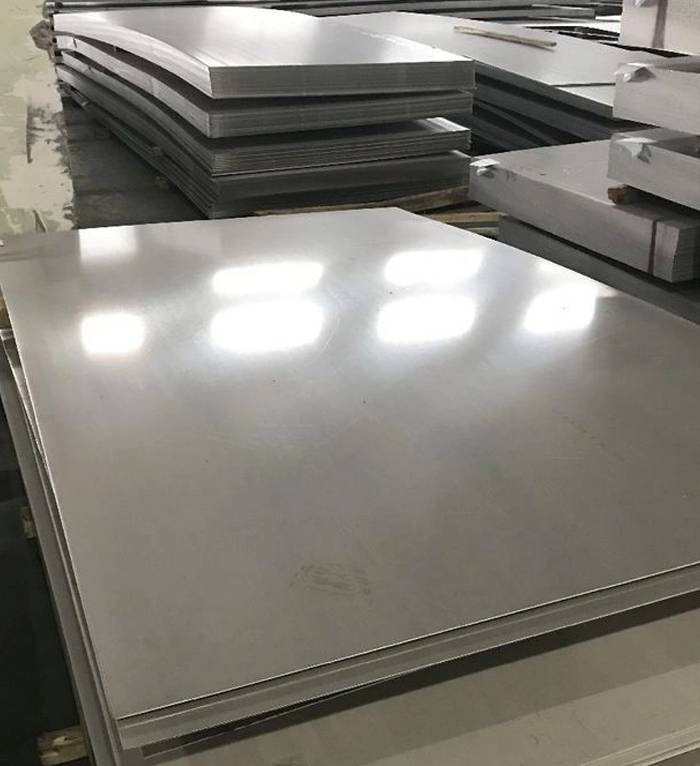

Stainless Steel 317L Sheets
Stainless Steel 317L Sheets
About BSPL Stainless Steel 317L Sheet
Bhavya Stainless Private Limited (BSPL) is a well-known stockist and distributor of top notch quality Stainless Steel 317L Sheets, which are used in a variety of sectors including aerospace, railway, engineering, medical instruments, and industrial manufacturing. Stainless Steel 317L Sheets have high thermal as well as electric conductivity and have the potential to be utilized as a superconductor. SS 317L Sheets offer excellent physical qualities and are a tough, ductile alloy that is ideal for heavy-duty structural components.
As a result, Stainless Steel 317L Sheets are widely used in automatic screw machine goods that require extensive machining. Stainless Steel 317L Sheets is one of the most often used alloys for automatic screw machine operations due to its excellent machinability and high strength. Stainless Steel 317L Sheets, with their high endurance and extraordinary damage tolerance are used to gain an edge components and elements has high strength to weight ratio is sought.
Common Characteristics of Stainless Steel 317L Sheets
• 317L is a low carbon "L" grade austenitic stainless steel containing molybdenum
that is more resistant to corrosion than 304L and 316L. The material resists
sensitization while welding & more heat operations due to its low carbon
content.
• When annealed, SS 317L is nonmagnetic, although it can become magnetic after
welding. SS
317L Sheet is highly corrosion resistant in a wide variety of
chemicals, notably acidic chloride conditions prevalent in pulp and paper mills.
• 317L Sheet may be easily welded with a variety of typical welding processes. We
employ filler metals or austenitic, low carbon filler metals having more molybdenum
than 317L to weld 317, or a nickel-base filler metal with enough Cr and Mo content
to surpass 317L resistance to corrosion.
Because of the benefits and chemical composition of SS 317L Sheet, it is mostly used in many industries for a variety of uses: Pulp/Paper machinery, Chemical and petrochemical processing, Preparation of food, fuels refineries and nuclear power are used to generate electricity. Flue gas desulfurization systems
317L Sheets Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
317L Sheets Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
SS 317L Sheets Size Range | Cold rolled ASME SA240 Grade 317L Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 317L Stainless Steel Sheet 3.0–10.0 mm |
317L SS Sheets Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
SS 317L Sheets Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
SS 317L Sheets Thickness | 0.3 mm to 120 mm |
International Standard of Stainless Steel 317L Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
Tolerances (width / thickness) of Stainless Steel 317L Sheets | EN 10258/ DIN 59381 EN 10151 ASME SA240 317L SS Sheet EN 10088 SA240 317L Sheet |
Finish of SS 317L Sheets | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
Form | Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed |
Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
Stainless Steel 317L Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Material Equivalent Chart
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 317L Pipe | 1.4438 | SUS 317L | S31703 | - | - | - | X2CrNiMo18-15-4 |
FINISH | THICKNESS MM | MAX SHEET SIZE MM |
Plain 2B | 0.9 | 2000 x 1000 |
Bright | 0.9 | 2000 x 1000 |
Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 |
Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 |
Embossed | 0.8, 1.0 | 2500 x 1250 |
SS 317L Sheet Price Per Kg | FOB Price:US $1800-2500/ Ton | 317L Stainless Steel Sheet Price In India |
SS 317L Sheet Price List | FOB Price:US $1000-3000 / Ton | 317L Stainless Steel Sheet Price Philippines |
SS 317L 1mm Sheet Price | FOB Price:US $1245-1986 / Ton | 317L Stainless Steel Sheet Prices Australia |
24 Gauge Stainless Steel 317L Sheet Price | FOB Price:US $1000-1500 / Ton | 317L Stainless Steel Sheet Prices Melbourne |
317L SS Sheet Price | FOB Price:US $1800-2300 / Ton | 317L Stainless Steel Sheet Price Malaysia |
317L Stainless Steel Sheet Price List | FOB Price:US $1000-4000 / Ton | 317L Stainless Steel Sheet Price In UAE |
SS 317L Sheet Price | FOB Price:US $800-3500 / Ton | 317L Stainless Steel Sheet Price In Sri Lanka |
20 Gauge Stainless Steel 317L Sheet Price | FOB Price:US $900-4700 / Ton | 317L Stainless Steel Sheet Price In Saudi Arabia |
317L Stainless Steel Sheets 4x8 Prices | FOB Price:US $1000-5000 / Ton | 317L Stainless Steel Sheet Prices Brisbane |
SS 317L 4x8 Sheet Metal Prices | FOB Price:US $1000-3000 / Ton | 317L Stainless Steel Sheet Price UK |
2mm Stainless Steel 317L Sheet Price | FOB Price:US $500-2500 / Ton | 317L SS Sheet Price In Bangladesh |
16 Gauge Stainless Steel 317L Sheet Price | FOB Price:US $2400-3200 / Ton | 317L SS Sheet Price In Chennai |
3mm Stainless Steel 317L Sheet Price | FOB Price:US $1000-3000 / Metric Ton | SS 317L Sheet Price Per Kg In Chennai |
18 Gauge Stainless Steel 317L Sheet Price | FOB Price:US $1140-3015 / Ton | 317L SS Sheet Price Per Kg In Bangalore |
Mirror Finish Stainless Steel 317L Sheet Price | FOB Price:US $1000-3500 / Ton | 317L SS Sheet Price In Delhi |
Perforated Stainless Steel 317L Sheet Price | FOB Price:US $1000-3000 / Ton | 317L SS Sheet Price Per Kg In Ahmedabad |
SS 317L Electropolished Sheet Price | FOB Price:US $1500-5000 / Ton | 317L SS Sheet Price In Hyderabad |
SS 317L Shim Sheet Price | FOB Price:US $999-4000 / Ton | 317L SS Sheet Price In Coimbatore |
SS 317L Plain Sheet Price | FOB Price:US $2.1-8.8 / Piece | 317L SS Sheet Price In Sri Lanka |
Stainless Steel Sheet Finish Types
No. 8 Finish | Brushed Finish |
Electro Polished Pla | Mirror Finish |
Patterned Finish | 2B Finish |
Polished Finishes | Mirror Polished |
No. 4 – Brushed finish | 2R (Bright Annealed) Finish |
No. 2B – Matte finish | No.8 – Mirror finish |
Polished Finishes | Mirror Polished |
Thickness in. (mm) |
Width | |
36 (914.4) in. (mm) |
48 (1,219) in. (mm) |
|
0.017–0.030 (0.43–0.76) | 0.0015 (0.038) | 0.002 (0.051) |
0.031–0.041 (0.79–1.04) | 0.002 (0.051) | 0.003 (0.076) |
0.042–0.059 (1.1–1.5) | 0.003 (0.076) | 0.004 (0.10) |
0.060–0.073 (1.5–1.9) | 0.003 (0.076) | 0.0045 (0.11) |
0.074–0.084 (1.9–2.1) | 0.004 (0.10) | 0.0055 (0.14) |
0.085–0.099 (2.2–2.5) | 0.004 (0.10) | 0.006 (0.15) |
0.100–0.115 (2.5–2.9) | 0.005 (0.13) | 0.007 (0.18) |
0.116–0.131 (2.9–3.3) | 0.005 (0.13) | 0.0075 (0.19) |
0.132–0.146 (3.4–3.7) | 0.006 (0.15) | 0.009 (0.23) |
0.147–0.187 (3.7–4.7) | 0.007 (0.18) | 0.0105 (0.2 |
SS Sheet Weight Chart
WEIGHT PER SS SHEETS : | ||||
THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
0.18 | 2.88 | - | - | 1.44 |
0.20 | 3.20 | - | - | 1.60 |
0.22 | 3.52 | - | - | 1.76 |
0.24 | 3.84 | - | - | 1.92 |
0.27 | 4.32 | - | - | 2.16 |
0.28 | 4.48 | - | - | 2.24 |
0.32 | 5.12 | - | - | 2.56 |
0.38 | 6.08 | - | - | 3.04 |
0.44 | 7.04 | 11.00 | - | 3.52 |
0.50 | 8.00 | 12.50 | - | 4.00 |
0.56 | 8.96 | 14.00 | - | 4.48 |
0.63 | 10.08 | 15.75 | - | 5.04 |
0.75 | 12.00 | 18.75 | - | 6.00 |
0.88 | 14.08 | 22.00 | - | 7.04 |
1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
.1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Sheet Dimensions
No 2D Finish -No. 2B Finish - Annealed, Cold Rolled -No. 4 Finish -One Side Polished -No. 3 Finish - One Side Polished
Width and Length, Gauge | per Sheet Est. Wt. | Lbs. per Sq Ft. Weight |
10GA (.135”) |
||
60 x 144* |
340.2 | 5.670 |
48 x 96 | 181.4 | |
36 x 120 | 170.1 | |
60 x 120* |
283.5 | |
48 x 120 | 226.8 | |
72 x 120* | 340.2 | |
7GA (.1874") |
||
48 x 120 | 314.8 | 7.871 |
48 x 96 | 251.9 | |
48 x 144 | 377.8 | |
12 Ga. (.105") | ||
36 x 120 | 132.3 | 4.410 |
36 x 96 | 105.8 | |
42 x 120 | 154.4 | |
72 x 144 | 317.5 | |
48 x 96 | 141.1 | |
36 x 144 | 158.8 | |
48 x 120 | 176.4 | |
60 x 96 | 176.4 | |
48 x 144 | 211.7 | |
60 x 144 | 264.6 | |
60 x 120 | 220.5 | |
72 x 120* | 264.6 | |
11 GA (.120") | ||
36 x 120 | 151.2 | 5.040 |
36 x 96 | 121.0 | |
36 x 144 | 181.4 | |
48 x 120 | 201.6 | |
48 x 96 | 161.3 | |
60 x 120 | 252.0 | |
48 x 144 | 241.9 | |
72 x 120* | 302.4 | |
60 x 144 | 302.4 | |
72 x 144* | 362.9 | |
14 Ga. (.075") | ||
36 x 96 | 75.60 | 3.150 |
30 x 120 | 78.75 | |
36 x 144 | 113.4 | |
36 x 120 | 94.50 | |
42 x 144 | 132.3 | |
48 x 96 | 100.8 | |
42 x 120 | 110.3 | |
72 x 144 | 226.8 | |
48 x 144 | 151.2 | |
48 x 120 | 126.0 | |
60 x 144 | 189.0 | |
60 x 120 | 157.5 | |
72 x 120 | 189.0 | |
13 Ga (.090") | ||
36 x 120 | 113.4 | 3.780 |
36 x 96 | 90.72 | |
48 x 120 | 151.2 | |
18 Ga. (.048") | ||
30 x 120 | 50.40 | 2.016 |
30 x 96 | 40.32 | |
36 x 120 | 60.48 | |
36 x 96 | 48.38 | |
42 x 120 | 70.56 | |
36 x 144 | 72.58 | |
48 x 120 | 80.64 | |
48 x 96 | 64.51 | |
60 x 120 | 100.8 | |
48 x 144 | 96.77 | |
60 x 144 | 121.0 | |
16 Ga. (.060") | ||
30 x 120 | 63.00 | 2.520 |
30 x 96 | 50.40 | |
36 x 120 | 75.60 | |
36 x 96 | 60.48 | |
42 x 120 | 88.20 | |
36 x 144 | 90.72 | |
48 x 120 | 100.8 | |
60 x 120 | 126.0 | |
48 x 96 | 80.64 | |
60 x 96 | 100.8 | |
48 x 144 | 121.0 | |
60 x 144 | 151.2 | |
20 Ga. (.036") | ||
30 x 120 | 37.80 | 1.512 |
30 x 96 | 30.24 | |
36 x 120 | 45.36 | |
36 x 96 | 36.29 | |
42 x 120 | 52.92 | |
36 x 144 | 54.43 | |
48 x 120 | 60.48 | |
48 x 96 | 48.38 | |
48 x 144 | 72.58 | |
26 Ga. (.018") | ||
30 x 120 | 18.90 | .7560 |
48 x 120 | 30.24 | |
36 x 120 | 22.68 | |
36 x 96 | 18.14 | |
30 x 96 | 15.12 | |
48 x 96 | 24.1 | |
19 Ga. (.042") | ||
36 x 120 | 52.92 | 1.764 |
24 Ga. (.024") | ||
30 x 120 | 25.20 | 1.008 |
30 x 96 | 20.16 | |
48 x 120 | 40.32 | |
36 x 120 | 30.24 | |
36 x 96 | 24.19 | |
48 x 96 | 32.26 | |
22 Ga. (.030") | ||
30 x 120 | 61.50 | 1.260 |
30 x 96 | 25.20 | |
36 x 120 | 37.80 | |
36 x 96 | 30.24 | |
48 x 96 | 40.32 | |
36 x 144 | 45.36 | |
48 x 120 | 50.40 | |
28 Ga. (.015") | ||
36 x 120 | 18.90 | .630 |
36 x 96 | 15.12 |
Steel Equivalent Grades Chart
USA | France | Germany | Germany | Italy | Japan | Russia | Spain | Sweden | UK | European Union |
AISI | AFNOR | DIN 17006 | W.N. 17007 | UNI | JIS | GOST | UNE | SIS | BSI | EURONORM |
317L | Z 2 CND 19-15 | X 2 CrNiMo 18 16 4 | 1.4438 | X 2 CrNiMo 1815 | SUS 317L | 23 67 | 317S12 | X 3 CrNiMo 18 16 4 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
317L SS | min. | – | – | – | – | – | 18.0 | 3.0-4.0 | 11.0 |
max. | 0.08 | 2.0 | 1.0 | 0.040 | 0.030 | 20.0 | 15.0 |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Searches Related to Sheet | Sheets We Stock & Supplied | Country / Cities |
317L Stainless Steel Sheet Suppliers | 16 Gauge 317L Stainless Steel Sheet | Canada, Philippines, Saudi Arabia, Vietnam |
Stainless Steel 317L Sheet Thickness | 317L Stainless Steel Cold Rolled Sheet | South Korea, Switzerland, France, Denmark |
Jindal SS 317L Sheet Weight Chart | 20 Gauge 317L Stainless Steel Sheet | United States, Nepal, Iran, Australia |
317L Stainless Steel Sheet Metal Gauge Chart | 3mm 317L Stainless Steel Sheet | Thailand, Sweden, Malaysia, Bangladesh |
317L Stainless Steel Sheet Thickness Chart | 317L Stainless Steel Shim Sheets | Bahrain, Lithuania, Kuwait, United Kingdom |
2mm 317L Stainless Steel Sheet Price | 10 Gauge 317L Stainless Steel Sheet | Israel, Puerto Rico, Singapore, Mexico |
Mirror Finish 317L Stainless Steel Sheet Price | 3mm Stainless Steel TP317L Sheet | Russia, Brazil, Hong Kong, United Arab Emirates |
TP317L Stainless Steel Sheet 2mm Price | Stainless Steel Tp317L 2B Finish Sheets | Tibet, Greece, South Africa, Afghanistan |
Jindal Steel 317L Sheet Price Per Kg | SS 317L Plain Sheets | Sri Lanka, Italy, China, Germany |
317L SS Sheet Thickness in MM | Electropolishing Stainless Steel 317L Sheets | Turkey, Ireland, Bolivia, Egypt |
TP317L Stainless Steel Weight Per Square Meter | Brushed Stainless Steel 317L Sheets | Oman, Belarus, Yemen, Namibia |
22 Gauge Stainless Steel 317L Sheet Price | ASME SA240m Steel 317L Cold Rolled Sheets | Qatar, Algeria, Libya, Nigeria |
SS 317L Sheet Hsn Code | Stainless Steel 317L HR Sheets | Japan, Poland, Austria, Bhutan |
S.S. 317L Sheet Price | 317L Stainless Steel Sheets Cut To Size | Nigeria, Portugal, Czech Republic, Croatia |
317L Stainless Steel Sheet Length | 317L Quality Stainless Steel Sheet | Jordan, Hungary, Finland, Spain | Stainless Steel 317L Sheet Weight Calculator | Stainless Steel 317L CR Sheets | Bengaluru, Mumbai, Chennai, Hyderabad |
3mm 317L Stainless Steel Sheet Price | Stainless Steel 317L BA Finish Sheets | Kolkata, Pune, New Delhi, Ahmedabad |
Jindal 317L Stainless Steel Sheet Dealer | Custom Stainless Steel 317L Sheets | Jaipur, Surat, Bangalore, Varanasi |
SS 317L Sheet Rate | 317L Stainless Steel Custom Length Sheet | Coimbatore, Kannur Nagpur Vadodara |
SS 317L Sheet Density | SUS 317L Sheets #4 Finish | Noida, Thane, Agra, Bhagalpur |
Industrial Applications Examples
Automotive
Rail cars
Steel constructions
Truck frames
Stone or iron chutes
Lifting and mobile equipment
Wearing plates
Crane booms
Construction of bridges
Oil & Gas
Aerospace
Machine building
Vehicles and transport equipment
Heavy Equipment
Framework structures
Construction
Shipbuilding
Power Generation
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
Chemical
Pylons and other architectural structures
Containers
