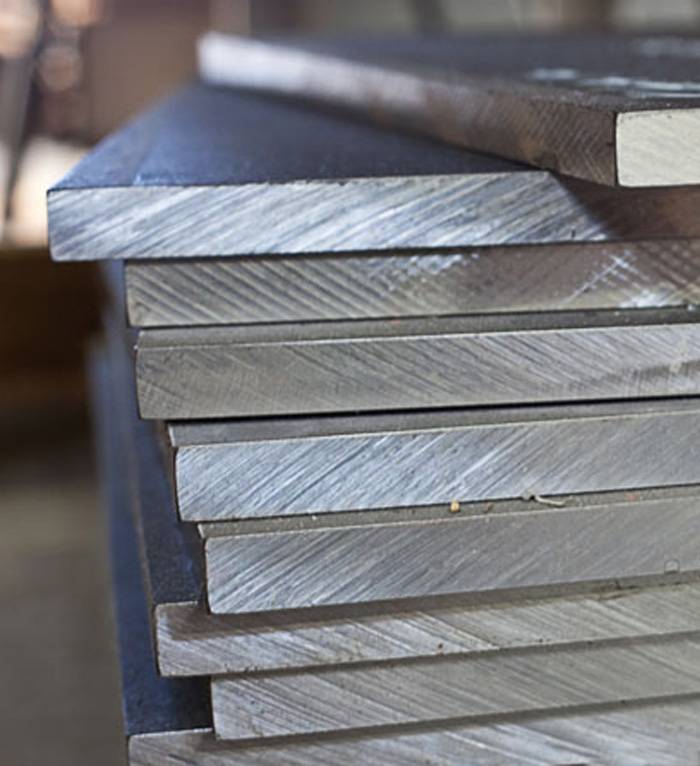

About BSPL Stainless Steel X5crni18-10 Sheet
Bhavya Stainless Pvt. Ltd is an esteemed Manufacturer, Supplier, and Stockist of the Stainless Steel X5crni18-10 Sheet, a widely used chromium-nickel austenitic alloy. X5crni18-10 – sheets have a variety of properties, including good corrosion resistance, and construction, as well as good weldability. Even at cryogenic temperatures, which are classified as extremely low temperatures, low-temperature qualities that respond well to cold operations, and so on, these Sheets exhibit outstanding toughness. In intermittent service up to 870 degrees Celsius and continuous service up to 925 degrees Celsius, our X5crni18-10 sheets have excellent oxidation resistance. Continuous usage at 425- 860 degrees C, however, is not suggested. In intermittent service to 1600°F and continuous service to 1690°F, X5crni18-10 – sheets exhibit good oxidation resistance.
Stainless Steel (X5CrNi18-10) Sheets is a traditional austenitic stainless steel that resists atmospheric, organic, and inorganic chemicals well. Because of its outstanding intergranular corrosion resistance, cold deformability, deep drawability, and weldability, this material is frequently employed. The presence of chromium in this material results in the formation of a surface oxide layer that ensures stainless steel's resistance to specific compounds as well as natural environmental influences such as water.
If the metal surface is scratched or otherwise damaged, the X5CrNi18-10 stainless steel sheet "heals" these areas and prevents corrosion from occurring under normal conditions. Furthermore, its low cost and mechanical features, such as outstanding formability during pressing, deep drawing, and bending, make it an ideal metal that, unlike aluminum, is not only more useful but also has a more appealing visual look. These sheets are employed in a variety of settings, including the marine environment, the food industry, heat exchangers, the chemical industry, and the brewing business.
Stainless Steel X5crni18-10 Sheets are available from Bhavya Stainless Pvt. Ltd. at competitive prices. We offer both ready-made and custom-made items to meet the needs of our customers. Before sending our products out for delivery, we go through a series of quality control measures to ensure that they are in good condition.
| X5crni18-10 Sheets Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
| X5crni18-10 Sheets Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS X5crni18-10 Sheets Size Range | Cold rolled ASME SA240 Grade X5crni18-10 Stainless Steel Sheet 0.5-6.4
mm Hot rolled ASME SA240 Grade X5crni18-10 Stainless Steel Sheet 3.0–10.0 mm |
| X5crni18-10 SS Sheets Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS X5crni18-10 Sheets Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS X5crni18-10 Sheets Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel X5crni18-10 Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel X5crni18-10 Sheets | EN 10258/ DIN 59381 EN 10151 ASME SA240 X5crni18-10 SS Sheet EN 10088 SA240 X5crni18-10 Sheet |
| Finish of SS X5crni18-10 Sheets | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Stainless Steel X5crni18-10 Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Material Equivalent Chart
| Grade | UNS | AFNOR | DIN | W.N. | JIS | GOST | EN |
| X5crni18-10 | S30400 | Z7CN18-09 | X5CrNi18-9 | 1.4301 | SUS304 | 08KH18N10 | X5CrNi18-10 |
| FINISH | THICKNESS MM | MAX SHEET SIZE MM |
| Plain 2B | 0.9 | 2000 x 1000 |
| Bright | 0.9 | 2000 x 1000 |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
| SS X5crni18-10 Sheet Price Per Kg | FOB Price:US $1800-2500/ Ton | X5crni18-10 Stainless Steel Sheet Price In India |
| SS X5crni18-10 1mm Sheet Price | FOB Price:US $1245-1986 / Ton | X5crni18-10 Stainless Steel Sheet Prices Australia |
| SS X5crni18-10 Sheet Price List | FOB Price:US $1000-3000 / Ton | X5crni18-10 Stainless Steel Sheet Price Philippines |
| X5crni18-10 SS Sheet Price | FOB Price:US $1800-2300 / Ton | X5crni18-10 Stainless Steel Sheet Price Malaysia |
| SS X5crni18-10 Sheet Price | FOB Price:US $800-3500 / Ton | X5crni18-10 Stainless Steel Sheet Price In Sri Lanka |
| X5crni18-10 Stainless Steel Sheet Price List | FOB Price:US $1000-4000 / Ton | X5crni18-10 Stainless Steel Sheet Price In UAE |
| 20 Gauge Stainless Steel X5crni18-10 Sheet Price | FOB Price:US $900-4700 / Ton | X5crni18-10 Stainless Steel Sheet Price In Saudi Arabia |
| X5crni18-10 Stainless Steel Sheets 4x8 Prices | FOB Price:US $1000-5000 / Ton | X5crni18-10 Stainless Steel Sheet Prices Brisbane |
| 24 Gauge Stainless Steel X5crni18-10 Sheet Price | FOB Price:US $1000-1500 / Ton | X5crni18-10 Stainless Steel Sheet Prices Melbourne |
| 3mm Stainless Steel X5crni18-10 Sheet Price | FOB Price:US $1000-3000 / Metric Ton | SS X5crni18-10 Sheet Price Per Kg In Chennai |
| SS X5crni18-10 4x8 Sheet Metal Prices | FOB Price:US $1000-3000 / Ton | X5crni18-10 Stainless Steel Sheet Price UK |
| 16 Gauge Stainless Steel X5crni18-10 Sheet Price | FOB Price:US $2400-3200 / Ton | X5crni18-10 SS Sheet Price In Chennai |
| 18 Gauge Stainless Steel X5crni18-10 Sheet Price | FOB Price:US $1140-3015 / Ton | X5crni18-10 SS X5crni18-10 Sheet Price Per Kg In Bangalore |
| Mirror Finish Stainless Steel X5crni18-10 Sheet Price | FOB Price:US $1000-3500 / Ton | X5crni18-10 SS X5crni18-10 Sheet Price In Delhi |
| 2mm Stainless Steel X5crni18-10 Sheet Price | FOB Price:US $500-2500 / Ton | X5crni18-10 SS Sheet Price In Bangladesh |
| Perforated Stainless Steel X5crni18-10 Sheet Price | FOB Price:US $1000-3000 / Ton | X5crni18-10 SS X5crni18-10 Sheet Price Per Kg In Ahmedabad |
| SS X5crni18-10 Shim Sheet Price | FOB Price:US $999-4000 / Ton | X5crni18-10 SS Sheet Price In Coimbatore |
| SS X5crni18-10 Plain Sheet Price | FOB Price:US $2.1-8.8 / Piece | X5crni18-10 SS Sheet Price In Sri Lanka |
| SS X5crni18-10 Electropolished Sheet Price | FOB Price:US $1500-5000 / Ton | X5crni18-10 SS Sheet Price In Hyderabad |
Stainless Steel Sheet Finish Types
| Electro Polished Pla | Mirror Finish |
| Patterned Finish | 2B Finish |
| No. 2B – Matte finish | No.8 – Mirror finish |
| No.4 Finish | 8K Finish |
| No. 8 Finish | Brushed Finish |
| No. 4 – Brushed finish | 2R (Bright Annealed) Finish |
| Polished Finishes | Mirror Polished |
| Thickness in. (mm) |
Width | |
| 36 (914.4) in. (mm) |
48 (1,219) in. (mm) |
|
| 0.017–0.030 (0.43–0.76) | 0.0015 (0.038) | 0.002 (0.051) |
| 0.031–0.041 (0.79–1.04) | 0.002 (0.051) | 0.003 (0.076) |
| 0.042–0.059 (1.1–1.5) | 0.003 (0.076) | 0.004 (0.10) |
| 0.060–0.073 (1.5–1.9) | 0.003 (0.076) | 0.0045 (0.11) |
| 0.074–0.084 (1.9–2.1) | 0.004 (0.10) | 0.0055 (0.14) |
| 0.085–0.099 (2.2–2.5) | 0.004 (0.10) | 0.006 (0.15) |
| 0.100–0.115 (2.5–2.9) | 0.005 (0.13) | 0.007 (0.18) |
| 0.116–0.131 (2.9–3.3) | 0.005 (0.13) | 0.0075 (0.19) |
| 0.132–0.146 (3.4–3.7) | 0.006 (0.15) | 0.009 (0.23) |
| 0.147–0.187 (3.7–4.7) | 0.007 (0.18) | 0.0105 (0.2 |
SS Sheet Weight Chart
| WEIGHT PER SS SHEETS : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | - | - | 1.44 |
| 0.20 | 3.20 | - | - | 1.60 |
| 0.22 | 3.52 | - | - | 1.76 |
| 0.24 | 3.84 | - | - | 1.92 |
| 0.27 | 4.32 | - | - | 2.16 |
| 0.28 | 4.48 | - | - | 2.24 |
| 0.32 | 5.12 | - | - | 2.56 |
| 0.38 | 6.08 | - | - | 3.04 |
| 0.44 | 7.04 | 11.00 | - | 3.52 |
| 0.50 | 8.00 | 12.50 | - | 4.00 |
| 0.56 | 8.96 | 14.00 | - | 4.48 |
| 0.63 | 10.08 | 15.75 | - | 5.04 |
| 0.75 | 12.00 | 18.75 | - | 6.00 |
| 0.88 | 14.08 | 22.00 | - | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Sheet Dimensions
No 2D Finish -No. 2B Finish - Annealed, Cold Rolled -No. 4 Finish -One Side Polished -No. 3 Finish - One Side Polished
| Width and Length, Gauge | per Sheet Est. Wt. | Lbs. per Sq Ft. Weight |
| 10GA (.135”) |
||
| 60 x 144* |
340.2 | 5.670 |
| 48 x 96 | 181.4 | |
| 36 x 120 | 170.1 | |
| 60 x 120* |
283.5 | |
| 48 x 120 | 226.8 | |
| 72 x 120* | 340.2 | |
| 7GA (.1874") |
||
| 48 x 120 | 314.8 | 7.871 |
| 48 x 96 | 251.9 | |
| 48 x 144 | 377.8 | |
| 12 Ga. (.105") | ||
| 36 x 120 | 132.3 | 4.410 |
| 36 x 96 | 105.8 | |
| 42 x 120 | 154.4 | |
| 72 x 144 | 317.5 | |
| 48 x 96 | 141.1 | |
| 36 x 144 | 158.8 | |
| 48 x 120 | 176.4 | |
| 60 x 96 | 176.4 | |
| 48 x 144 | 211.7 | |
| 60 x 144 | 264.6 | |
| 60 x 120 | 220.5 | |
| 72 x 120* | 264.6 | |
| 11 GA (.120") | ||
| 36 x 120 | 151.2 | 5.040 |
| 36 x 96 | 121.0 | |
| 36 x 144 | 181.4 | |
| 48 x 120 | 201.6 | |
| 48 x 96 | 161.3 | |
| 60 x 120 | 252.0 | |
| 48 x 144 | 241.9 | |
| 72 x 120* | 302.4 | |
| 60 x 144 | 302.4 | |
| 72 x 144* | 362.9 | |
| 14 Ga. (.075") | ||
| 36 x 96 | 75.60 | 3.150 |
| 30 x 120 | 78.75 | |
| 36 x 144 | 113.4 | |
| 36 x 120 | 94.50 | |
| 42 x 144 | 132.3 | |
| 48 x 96 | 100.8 | |
| 42 x 120 | 110.3 | |
| 72 x 144 | 226.8 | |
| 48 x 144 | 151.2 | |
| 48 x 120 | 126.0 | |
| 60 x 144 | 189.0 | |
| 60 x 120 | 157.5 | |
| 72 x 120 | 189.0 | |
| 13 Ga (.090") | ||
| 36 x 120 | 113.4 | 3.780 |
| 36 x 96 | 90.72 | |
| 48 x 120 | 151.2 | |
| 18 Ga. (.048") | ||
| 30 x 120 | 50.40 | 2.016 |
| 30 x 96 | 40.32 | |
| 36 x 120 | 60.48 | |
| 36 x 96 | 48.38 | |
| 42 x 120 | 70.56 | |
| 36 x 144 | 72.58 | |
| 48 x 120 | 80.64 | |
| 48 x 96 | 64.51 | |
| 60 x 120 | 100.8 | |
| 48 x 144 | 96.77 | |
| 60 x 144 | 121.0 | |
| 16 Ga. (.060") | ||
| 30 x 120 | 63.00 | 2.520 |
| 30 x 96 | 50.40 | |
| 36 x 120 | 75.60 | |
| 36 x 96 | 60.48 | |
| 42 x 120 | 88.20 | |
| 36 x 144 | 90.72 | |
| 48 x 120 | 100.8 | |
| 60 x 120 | 126.0 | |
| 48 x 96 | 80.64 | |
| 60 x 96 | 100.8 | |
| 48 x 144 | 121.0 | |
| 60 x 144 | 151.2 | |
| 20 Ga. (.036") | ||
| 30 x 120 | 37.80 | 1.512 |
| 30 x 96 | 30.24 | |
| 36 x 120 | 45.36 | |
| 36 x 96 | 36.29 | |
| 42 x 120 | 52.92 | |
| 36 x 144 | 54.43 | |
| 48 x 120 | 60.48 | |
| 48 x 96 | 48.38 | |
| 48 x 144 | 72.58 | |
| 26 Ga. (.018") | ||
| 30 x 120 | 18.90 | .7560 |
| 48 x 120 | 30.24 | |
| 36 x 120 | 22.68 | |
| 36 x 96 | 18.14 | |
| 30 x 96 | 15.12 | |
| 48 x 96 | 24.1 | |
| 19 Ga. (.042") | ||
| 36 x 120 | 52.92 | 1.764 |
| 24 Ga. (.024") | ||
| 30 x 120 | 25.20 | 1.008 |
| 30 x 96 | 20.16 | |
| 48 x 120 | 40.32 | |
| 36 x 120 | 30.24 | |
| 36 x 96 | 24.19 | |
| 48 x 96 | 32.26 | |
| 22 Ga. (.030") | ||
| 30 x 120 | 61.50 | 1.260 |
| 30 x 96 | 25.20 | |
| 36 x 120 | 37.80 | |
| 36 x 96 | 30.24 | |
| 48 x 96 | 40.32 | |
| 36 x 144 | 45.36 | |
| 48 x 120 | 50.40 | |
| 28 Ga. (.015") | ||
| 36 x 120 | 18.90 | .630 |
| 36 x 96 | 15.12 |
Steel Equivalent Grades Chart
| Grade | UNS | AFNOR | DIN | W.N. | JIS | GOST | EN |
| X5crni18-10 | S30400 | Z7CN18-09 | X5CrNi18-9 | 1.4301 | SUS304 | 08KH18N10 | X5CrNi18-10 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS X5crni18-10 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | - |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Searches Related to Sheet | Sheets We Stock & Supplied | Country / Cities |
| X5crni18-10 Stainless Steel Sheet Suppliers | 16 Gauge X5crni18-10 Stainless Steel Sheet | Canada, Philippines, Saudi Arabia, Vietnam |
| Stainless Steel X5crni18-10 Sheet Thickness | X5crni18-10 Stainless Steel Cold Rolled Sheet | South Korea, Switzerland, France, Denmark |
| X5crni18-10 Stainless Steel Sheet Metal Gauge Chart | 3mm X5crni18-10 Stainless Steel Sheet | Thailand, Sweden, Malaysia, Bangladesh |
| Jindal SS X5crni18-10 Sheet Weight Chart | 20 Gauge X5crni18-10 Stainless Steel Sheet | United States, Nepal, Iran, Australia |
| X5crni18-10 Stainless Steel Sheet Thickness Chart | X5crni18-10 Stainless Steel Shim Sheets | Bahrain, Lithuania, Kuwait, United Kingdom |
| TPX5crni18-10 Stainless Steel Sheet 2mm Price | Stainless Steel TpX5crni18-10 2B Finish Sheets | Tibet, Greece, South Africa, Afghanistan |
| 2mm X5crni18-10 Stainless Steel Sheet Price | 10 Gauge X5crni18-10 Stainless Steel Sheet | Israel, Puerto Rico, Singapore, Mexico |
| Mirror Finish Stainless Steel Sheet Price | 3mm Stainless Steel TPX5crni18-10 Sheet | Russia, Brazil, Hong Kong, United Arab Emirates |
| Jindal Steel Sheet Price Per Kg | SS X5crni18-10 Plain Sheets | Sri Lanka, Italy, China, Germany |
| X5crni18-10 SS Sheet Thickness in MM | Electropolishing Stainless Steel X5crni18-10 Sheets | Turkey, Ireland, Bolivia, Egypt |
| SS X5crni18-10 Sheet Hsn Code | Stainless Steel X5crni18-10 HR Sheets | Japan, Poland, Austria, Bhutan |
| 22 Gauge Stainless Steel X5crni18-10 Sheet Price | ASME SA240m Steel X5crni18-10 Cold Rolled Sheets | Qatar, Algeria, Libya, Nigeria |
| TPX5crni18-10 Stainless Steel Weight Per Square Meter | Brushed Stainless Steel X5crni18-10 Sheets | Oman, Belarus, Yemen, Namibia |
| X5crni18-10 Stainless Steel Sheet Length | X5crni18-10 Quality Stainless Steel Sheet | Jordan, Hungary, Finland, Spain |
| S.S. X5crni18-10 Sheet Price | X5crni18-10 Stainless Steel Sheets Cut To Size | Nigeria, Portugal, Czech Republic, Croatia |
| Stainless Steel X5crni18-10 Sheet Weight Calculator | Stainless Steel X5crni18-10 CR Sheets | Bengaluru, Mumbai, Chennai, Hyderabad |
| 3mm X5crni18-10 Stainless Steel Sheet Price | Stainless Steel X5crni18-10 BA Finish Sheets | Kolkata, Pune, New Delhi, Ahmedabad |
| Jindal X5crni18-10 Stainless Steel Sheet Dealer | Custom Stainless Steel X5crni18-10 Sheets | Jaipur, Surat, Bangalore, Varanasi |
| SS X5crni18-10 Sheet Density | SUS X5crni18-10 Sheets #4 Finish | Noida, Thane, Agra, Bhagalpur |
| SS X5crni18-10 Sheet Rate | X5crni18-10 Stainless Steel Custom Length Sheet | Coimbatore, Kannur Nagpur Vadodara |
Industrial Applications Examples
Shipbuilding
Aerospace
Lifting and mobile equipment
Pylons and other architectural structures
Heavy Equipment
Automotive
Chemical
Construction
Power Generation
Rail cars
Wearing plates
Containers
Steel constructions
Oil & Gas
Construction of bridges
Vehicles and transport equipment
Crane booms
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
Framework structures
Truck frames
Stone or iron chutes
Machine building
Our Products
Sheets
Stainless Steel 202 2B Matt PVC Sheets
Authorized Dealer of Jindal Stainless Steel Sheet
Quick Contact
