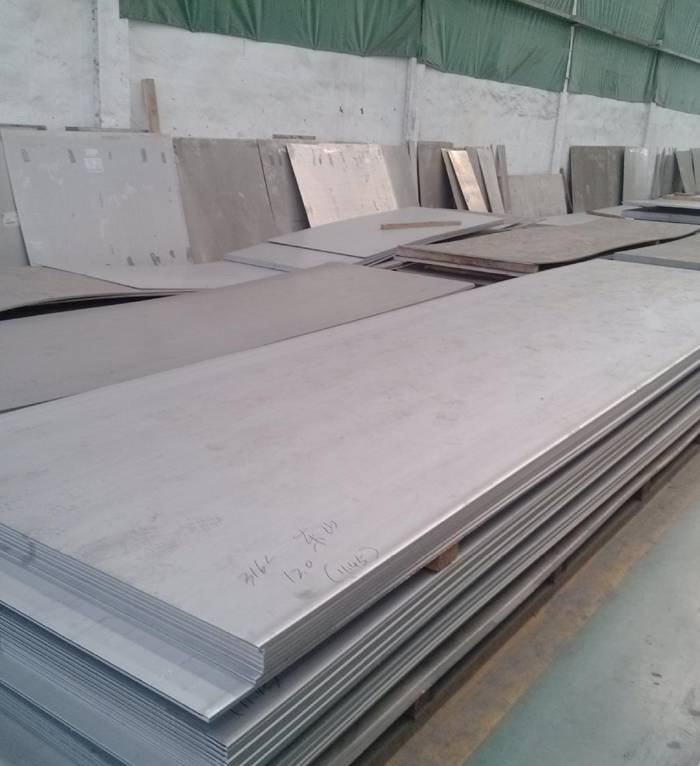

About BSPL Stainless Steel 321 Sheet
Bhavya Stainless Private Limited (BSPL) has a significant stock of Stainless steel 321 sheets on hand, and in many situations, the material is available to export on time. For steel plates supplied throughout India, we can also give unique quotations with incredibly competitive prices. BSPL is an unrivaled source of processed components due to our dedication to client service.
Properties of Stainless Steel 321 Sheet:
321 stainless steel sheet is an austenitic substance at its core. The inclusion of Titanium stabilizes the grade.
• Stainless steel 321 sheets are commonly used in applications requiring temperatures of up to 1,650°F.
• 321 stainless is a titanium-reinforced alloy that excels in high-temperature conditions, giving resistance to cracking and corrosion. Stainless steel 321 sheet offers high strength, scaling resistance, and phase stability, as well as resistance to aqueous corrosion.
• Because 304L sheet is more readily available in the majority of product geometries, it is frequently favored over 321 sheets if the only need is resistance to intergranular corrosion after welding.
• However, because 304L has less heat strength than 321 sheets, it may not be the best choice if resistance to operating temperatures beyond 932 °F is required.
Uses of Stainless Steel 321 Sheets:
• There are several applications for stainless steel 321 sheets, particularly in situations requiring higher temperatures.
• Heat exchangers, bellows, expansion joints, heating element tubing, and spiral welded tubes for burner pipes are all examples of components.
• SS 321 sheet is also used in woven or welded metal screens for high-temperature material processing.
• Stainless Steel 321 sheets are highly used in the chemical and food processing industries, especially in equipment and storage.
• Stainless Steel 321 sheet is also used in petroleum refining, the chemical sector, and waste treatment procedures.
• Aerospace, thermal, electrical, and structural applications are common uses for Stainless Steel Sheet 321.
| 321 Sheets Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
| 321 Sheets Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 321 Sheets Size Range | Cold rolled ASME SA240 Grade 321 Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 321 Stainless Steel Sheet 3.0–10.0 mm |
| 321 SS Sheets Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 321 Sheets Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 321 Sheets Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 321 Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 321 Sheets | EN 10258/ DIN 59381 EN 10151 ASME SA240 321 SS Sheet EN 10088 SA240 321 Sheet |
| Finish of SS 321 Sheets | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Stainless Steel 321 Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Material Equivalent Chart
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | AFNOR | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | 321S31 | Z7CN18‐09 | X5CrNi18-10 |
| FINISH | THICKNESS MM | MAX SHEET SIZE MM |
| Plain 2B | 0.9 | 2000 x 1000 |
| Bright | 0.9 | 2000 x 1000 |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
| 321 SS Sheet Price | FOB Price:US $1800-2300 / Ton | 321 Stainless Steel Sheet Price Malaysia |
| SS 321 Sheet Price List | FOB Price:US $1000-3000 / Ton | 321 Stainless Steel Sheet Price Philippines |
| SS 321 1mm Sheet Price | FOB Price:US $1245-1986 / Ton | 321 Stainless Steel Sheet Prices Australia |
| SS 321 Sheet Price | FOB Price:US $800-3500 / Ton | 321 Stainless Steel Sheet Price In Sri Lanka |
| SS 321 Sheet Price Per Kg | FOB Price:US $1800-2500/ Ton | 321 Stainless Steel Sheet Price In India |
| 321 Stainless Steel Sheet Price List | FOB Price:US $1000-4000 / Ton | 321 Stainless Steel Sheet Price In UAE |
| SS 321 4x8 Sheet Metal Prices | FOB Price:US $1000-3000 / Ton | 321 Stainless Steel Sheet Price UK |
| Mirror Finish Stainless Steel 321 Sheet Price | FOB Price:US $1000-3500 / Ton | 321 SS Sheet Price In Delhi |
| 321 Stainless Steel Sheets 4x8 Prices | FOB Price:US $1000-5000 / Ton | 321 Stainless Steel Sheet Prices Brisbane |
| 24 Gauge Stainless Steel 321 Sheet Price | FOB Price:US $1000-1500 / Ton | 321 Stainless Steel Sheet Prices Melbourne |
| 3mm Stainless Steel 321 Sheet Price | FOB Price:US $1000-3000 / Metric Ton | SS 321 Sheet Price Per Kg In Chennai |
| 16 Gauge Stainless Steel 321 Sheet Price | FOB Price:US $2400-3200 / Ton | 321 SS Sheet Price In Chennai |
| 2mm Stainless Steel 321 Sheet Price | FOB Price:US $500-2500 / Ton | 321 SS Sheet Price In Bangladesh |
| Perforated Stainless Steel 321 Sheet Price | FOB Price:US $1000-3000 / Ton | 321 SS Sheet Price Per Kg In Ahmedabad |
| 20 Gauge Stainless Steel 321 Sheet Price | FOB Price:US $900-4700 / Ton | 321 Stainless Steel Sheet Price In Saudi Arabia |
| 18 Gauge Stainless Steel 321 Sheet Price | FOB Price:US $1140-3015 / Ton | 321 SS Sheet Price Per Kg In Bangalore |
| SS 321 Plain Sheet Price | FOB Price:US $2.1-8.8 / Piece | 321 SS Sheet Price In Sri Lanka |
| SS 321 Shim Sheet Price | FOB Price:US $999-4000 / Ton | 321 SS Sheet Price In Coimbatore |
| SS 321 Electropolished Sheet Price | FOB Price:US $1500-5000 / Ton | 321 SS Sheet Price In Hyderabad |
Stainless Steel Sheet Finish Types
| Polished Finishes | Mirror Polished |
| Electro Polished Pla | Mirror Finish |
| No. 4 – Brushed finish | 2R (Bright Annealed) Finish |
| No.4 Finish | 8K Finish |
| No. 8 Finish | Brushed Finish |
| No. 2B – Matte finish | No.8 – Mirror finish |
| Patterned Finish | 2B Finish |
| Thickness in. (mm) |
Width | |
| 36 (914.4) in. (mm) |
48 (1,219) in. (mm) |
|
| 0.017–0.030 (0.43–0.76) | 0.0015 (0.038) | 0.002 (0.051) |
| 0.031–0.041 (0.79–1.04) | 0.002 (0.051) | 0.003 (0.076) |
| 0.042–0.059 (1.1–1.5) | 0.003 (0.076) | 0.004 (0.10) |
| 0.060–0.073 (1.5–1.9) | 0.003 (0.076) | 0.0045 (0.11) |
| 0.074–0.084 (1.9–2.1) | 0.004 (0.10) | 0.0055 (0.14) |
| 0.085–0.099 (2.2–2.5) | 0.004 (0.10) | 0.006 (0.15) |
| 0.100–0.115 (2.5–2.9) | 0.005 (0.13) | 0.007 (0.18) |
| 0.116–0.131 (2.9–3.3) | 0.005 (0.13) | 0.0075 (0.19) |
| 0.132–0.146 (3.4–3.7) | 0.006 (0.15) | 0.009 (0.23) |
| 0.147–0.187 (3.7–4.7) | 0.007 (0.18) | 0.0105 (0.2 |
SS Sheet Weight Chart
| WEIGHT PER SS SHEETS : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | - | - | 1.44 |
| 0.20 | 3.20 | - | - | 1.60 |
| 0.22 | 3.52 | - | - | 1.76 |
| 0.24 | 3.84 | - | - | 1.92 |
| 0.27 | 4.32 | - | - | 2.16 |
| 0.28 | 4.48 | - | - | 2.24 |
| 0.32 | 5.12 | - | - | 2.56 |
| 0.38 | 6.08 | - | - | 3.04 |
| 0.44 | 7.04 | 11.00 | - | 3.52 |
| 0.50 | 8.00 | 12.50 | - | 4.00 |
| 0.56 | 8.96 | 14.00 | - | 4.48 |
| 0.63 | 10.08 | 15.75 | - | 5.04 |
| 0.75 | 12.00 | 18.75 | - | 6.00 |
| 0.88 | 14.08 | 22.00 | - | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Sheet Dimensions
No 2D Finish -No. 2B Finish - Annealed, Cold Rolled -No. 4 Finish -One Side Polished -No. 3 Finish - One Side Polished
| Width and Length, Gauge | per Sheet Est. Wt. | Lbs. per Sq Ft. Weight |
| 10GA (.135”) |
||
| 60 x 144* |
340.2 | 5.670 |
| 48 x 96 | 181.4 | |
| 36 x 120 | 170.1 | |
| 60 x 120* |
283.5 | |
| 48 x 120 | 226.8 | |
| 72 x 120* | 340.2 | |
| 7GA (.1874") |
||
| 48 x 120 | 314.8 | 7.871 |
| 48 x 96 | 251.9 | |
| 48 x 144 | 377.8 | |
| 12 Ga. (.105") | ||
| 36 x 120 | 132.3 | 4.410 |
| 36 x 96 | 105.8 | |
| 42 x 120 | 154.4 | |
| 72 x 144 | 317.5 | |
| 48 x 96 | 141.1 | |
| 36 x 144 | 158.8 | |
| 48 x 120 | 176.4 | |
| 60 x 96 | 176.4 | |
| 48 x 144 | 211.7 | |
| 60 x 144 | 264.6 | |
| 60 x 120 | 220.5 | |
| 72 x 120* | 264.6 | |
| 11 GA (.120") | ||
| 36 x 120 | 151.2 | 5.040 |
| 36 x 96 | 121.0 | |
| 36 x 144 | 181.4 | |
| 48 x 120 | 201.6 | |
| 48 x 96 | 161.3 | |
| 60 x 120 | 252.0 | |
| 48 x 144 | 241.9 | |
| 72 x 120* | 302.4 | |
| 60 x 144 | 302.4 | |
| 72 x 144* | 362.9 | |
| 14 Ga. (.075") | ||
| 36 x 96 | 75.60 | 3.150 |
| 30 x 120 | 78.75 | |
| 36 x 144 | 113.4 | |
| 36 x 120 | 94.50 | |
| 42 x 144 | 132.3 | |
| 48 x 96 | 100.8 | |
| 42 x 120 | 110.3 | |
| 72 x 144 | 226.8 | |
| 48 x 144 | 151.2 | |
| 48 x 120 | 126.0 | |
| 60 x 144 | 189.0 | |
| 60 x 120 | 157.5 | |
| 72 x 120 | 189.0 | |
| 13 Ga (.090") | ||
| 36 x 120 | 113.4 | 3.780 |
| 36 x 96 | 90.72 | |
| 48 x 120 | 151.2 | |
| 18 Ga. (.048") | ||
| 30 x 120 | 50.40 | 2.016 |
| 30 x 96 | 40.32 | |
| 36 x 120 | 60.48 | |
| 36 x 96 | 48.38 | |
| 42 x 120 | 70.56 | |
| 36 x 144 | 72.58 | |
| 48 x 120 | 80.64 | |
| 48 x 96 | 64.51 | |
| 60 x 120 | 100.8 | |
| 48 x 144 | 96.77 | |
| 60 x 144 | 121.0 | |
| 16 Ga. (.060") | ||
| 30 x 120 | 63.00 | 2.520 |
| 30 x 96 | 50.40 | |
| 36 x 120 | 75.60 | |
| 36 x 96 | 60.48 | |
| 42 x 120 | 88.20 | |
| 36 x 144 | 90.72 | |
| 48 x 120 | 100.8 | |
| 60 x 120 | 126.0 | |
| 48 x 96 | 80.64 | |
| 60 x 96 | 100.8 | |
| 48 x 144 | 121.0 | |
| 60 x 144 | 151.2 | |
| 20 Ga. (.036") | ||
| 30 x 120 | 37.80 | 1.512 |
| 30 x 96 | 30.24 | |
| 36 x 120 | 45.36 | |
| 36 x 96 | 36.29 | |
| 42 x 120 | 52.92 | |
| 36 x 144 | 54.43 | |
| 48 x 120 | 60.48 | |
| 48 x 96 | 48.38 | |
| 48 x 144 | 72.58 | |
| 26 Ga. (.018") | ||
| 30 x 120 | 18.90 | .7560 |
| 48 x 120 | 30.24 | |
| 36 x 120 | 22.68 | |
| 36 x 96 | 18.14 | |
| 30 x 96 | 15.12 | |
| 48 x 96 | 24.1 | |
| 19 Ga. (.042") | ||
| 36 x 120 | 52.92 | 1.764 |
| 24 Ga. (.024") | ||
| 30 x 120 | 25.20 | 1.008 |
| 30 x 96 | 20.16 | |
| 48 x 120 | 40.32 | |
| 36 x 120 | 30.24 | |
| 36 x 96 | 24.19 | |
| 48 x 96 | 32.26 | |
| 22 Ga. (.030") | ||
| 30 x 120 | 61.50 | 1.260 |
| 30 x 96 | 25.20 | |
| 36 x 120 | 37.80 | |
| 36 x 96 | 30.24 | |
| 48 x 96 | 40.32 | |
| 36 x 144 | 45.36 | |
| 48 x 120 | 50.40 | |
| 28 Ga. (.015") | ||
| 36 x 120 | 18.90 | .630 |
| 36 x 96 | 15.12 |
Steel Equivalent Grades Chart
| USA | France | Germany | Germany | Italy | Japan | Russia | Spain | Sweden | UK | European Union |
| AISI | AFNOR | DIN 17006 | W.N. 17007 | UNI | JIS | GOST | UNE | SIS | BSI | EURONORM |
| 321 | Z 6 CN 18-09 | X 5 CrNi 18 10 X 5 CrNi 18 12 | 1.4541 | X 5 CrNi 1810 | SUS 321 | 08KH18N10 06KH18N11 | X 6 CrNi 19-10 | 23 32 | 321S15 321S16 | X 6 CrNi 18 10 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 321 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Searches Related to Sheet | Sheets We Stock & Supplied | Country / Cities |
| 321 Stainless Steel Sheet Suppliers | 16 Gauge 321 Stainless Steel Sheet | Canada, Philippines, Saudi Arabia, Vietnam |
| Stainless Steel 321 Sheet Thickness | 321 Stainless Steel Cold Rolled Sheet | South Korea, Switzerland, France, Denmark |
| Jindal SS 321 Sheet Weight Chart | 20 Gauge 321 Stainless Steel Sheet | United States, Nepal, Iran, Australia |
| 321 Stainless Steel Sheet Metal Gauge Chart | 3mm 321 Stainless Steel Sheet | Russia, Brazil, Hong Kong, United Arab Emirates |
| 321 Stainless Steel Sheet Thickness Chart | 321 Stainless Steel Shim Sheets | Bahrain, Lithuania, Kuwait, United Kingdom |
| 2mm 321 Stainless Steel Sheet Price | 10 Gauge 321 Stainless Steel Sheet | Israel, Puerto Rico, Singapore, Mexico |
| Mirror Finish Stainless Steel Sheet Price | 3mm Stainless Steel TP321 Sheet | Thailand, Sweden, Malaysia, Bangladesh |
| TP321 Stainless Steel Sheet 2mm Price | Stainless Steel Tp321 2B Finish Sheets | Tibet, Greece, South Africa, Afghanistan |
| Jindal Steel Sheet Price Per Kg | SS 321 Plain Sheets | Sri Lanka, Italy, China, Germany |
| 321 SS Sheet Thickness in MM | Electropolishing Stainless Steel 321 Sheets | Turkey, Ireland, Bolivia, Egypt |
| TP321 Stainless Steel Weight Per Square Meter | Brushed Stainless Steel 321 Sheets | Oman, Belarus, Yemen, Namibia |
| 22 Gauge Stainless Steel 321 Sheet Price | ASME SA240m Steel 321 Cold Rolled Sheets | Qatar, Algeria, Libya, Nigeria |
| 321 Stainless Steel Sheet Length | 321 Quality Stainless Steel Sheet | Jordan, Hungary, Finland, Spain |
| S.S. 321 Sheet Price | 321 Stainless Steel Sheets Cut To Size | Nigeria, Portugal, Czech Republic, Croatia |
| SS 321 Sheet Hsn Code | Stainless Steel 321 HR Sheets | Japan, Poland, Austria, Bhutan | Stainless Steel 321 Sheet Weight Calculator | Stainless Steel 321 CR Sheets | Bengaluru, Mumbai, Chennai, Hyderabad |
| 3mm 321 Stainless Steel Sheet Price | Stainless Steel 321 BA Finish Sheets | Kolkata, Pune, New Delhi, Ahmedabad |
| Jindal 321 Stainless Steel Sheet Dealer | Custom Stainless Steel 321 Sheets | Jaipur, Surat, Bangalore, Varanasi |
| SS 321 Sheet Rate | 321 Stainless Steel Custom Length Sheet | Coimbatore, Kannur Nagpur Vadodara |
| SS 321 Sheet Density | SUS 321 Sheets #4 Finish | Noida, Thane, Agra, Bhagalpur |
Industrial Applications Examples
Steel constructions
Aerospace
Rail cars
Pylons and other architectural structures
Power Generation
Construction of bridges
Truck frames
Stone or iron chutes
Heavy Equipment
Lifting and mobile equipment
Oil & Gas
Crane booms
Chemical
Wearing plates
Construction
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
Machine building
Vehicles and transport equipment
Framework structures
Containers
Shipbuilding
Automotive
Our Products
Sheets
Stainless Steel 202 2B Matt PVC Sheets
Authorized Dealer of Jindal Stainless Steel Sheet
Quick Contact
