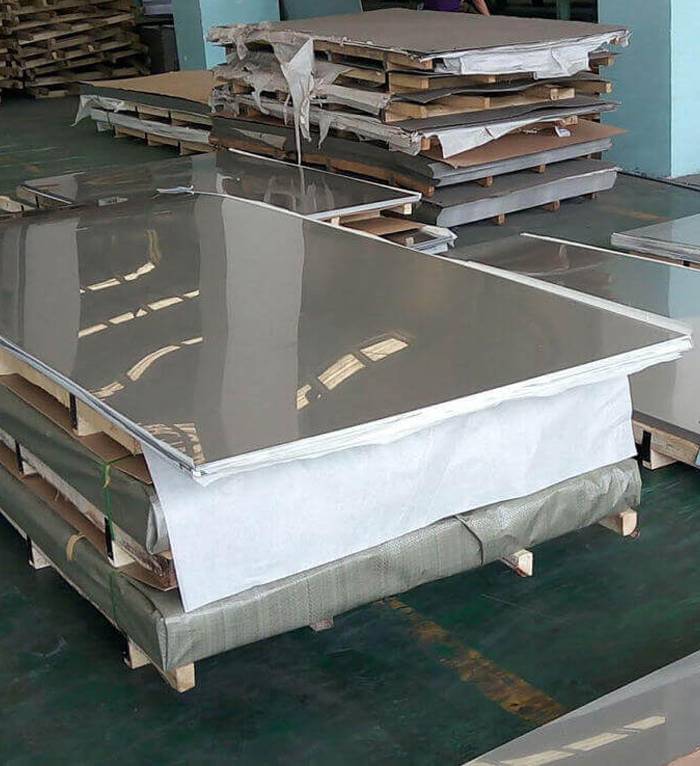

About BSPL Stainless Steel 904L Sheet
Bhavya Stainless Private Limited (BSPL) has built a reputation for superior quality and customer service. Quality and attention to detail are maintained throughout each project in which we participate, and it is on this basis that BSPL has risen beyond its competition.
• This high alloy SS contains Cu, which enhances its aversion to strong decreasing
acids like sulphuric acid.
• On the plus, the steel is aversive to stress corrosion cracking and crevice
corrosion.
• It has a high content of expensive materials like molybdenum and nickel.
• 904L SS sheets are highly resistant to chlorine attack and warm saltwater. The
inclusion of substantial levels of nickel in grade 904L's composition accounts for
its exceptional resistance to stress corrosion cracking. The applications that used
to use grade 904L are now substituted with low-cost duplex SS 2205.
• Furthermore, Copper material addition to the grades enhances the aversiveness to
sulphuric acid and also decreases agents in the aggressive and moderate settings.
The corrosion resistance of grade 904L falls in between super austenitic and
austenitic grades.
Applications of Stainless Steel 904L sheets:
• The wiring of electrostatic precipitators.
• The Components of an oil refinery System for cooling using seawater.
• Gas scrubbing plants Paper and pulp manufacturing industries.
• Plants for the production of acetic, phosphoric, and sulfuric acids.
• 904L stainless steel (SS904L) is utilized in towers, tanks, pipelines and tubes,
and heat exchangers in the petroleum, chemical, fertilizer, and marine development
industries.
• 904L stainless steel is also used in sulfuric acid storage and transportation
equipment, power plant equipment, seawater heat exchangers, paper industry
equipment, sulfuric acid, nitric acid equipment, acid production, pharmaceutical
industry and other chemical equipment, food equipment, centrifuges, reactors, soy
sauce tanks, cooking wine, salt tank equipment, and dressings, among other things.
| 904L Sheets Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
| 904L Sheets Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 904L Sheets Size Range | Cold rolled ASME SA240 Grade 904L Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 904L Stainless Steel Sheet 3.0–10.0 mm |
| 904L SS Sheets Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 904L Sheets Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 904L Sheets Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 904L Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 904L Sheets | EN 10258/ DIN 59381 EN 10151 ASME SA240 904L SS Sheet EN 10088 SA240 904L Sheet |
| Finish of SS 904L Sheets | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Stainless Steel 904L Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Material Equivalent Chart
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | STS 317J5L | 904S13 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| FINISH | THICKNESS MM | MAX SHEET SIZE MM |
| Plain 2B | 0.9 | 2000 x 1000 |
| Bright | 0.9 | 2000 x 1000 |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
| SS 904L Sheet Price Per Kg | FOB Price:US $1800-2500/ Ton | 904L Stainless Steel Sheet Price In India |
| SS 904L Sheet Price List | FOB Price:US $1000-3000 / Ton | 904L Stainless Steel Sheet Price Philippines |
| SS 904L 1mm Sheet Price | FOB Price:US $1245-1986 / Ton | 904L Stainless Steel Sheet Prices Australia |
| SS 904L Sheet Price | FOB Price:US $800-3500 / Ton | 904L Stainless Steel Sheet Price In Sri Lanka |
| 904L SS Sheet Price | FOB Price:US $1800-2300 / Ton | 904L Stainless Steel Sheet Price Malaysia |
| 904L Stainless Steel Sheet Price List | FOB Price:US $1000-4000 / Ton | 904L Stainless Steel Sheet Price In UAE |
| 24 Gauge Stainless Steel 904L Sheet Price | FOB Price:US $1000-1500 / Ton | 904L Stainless Steel Sheet Prices Melbourne |
| 20 Gauge Stainless Steel 904L Sheet Price | FOB Price:US $900-4700 / Ton | 904L Stainless Steel Sheet Price In Saudi Arabia |
| 904L Stainless Steel Sheets 4x8 Prices | FOB Price:US $1000-5000 / Ton | 904L Stainless Steel Sheet Prices Brisbane |
| SS 904L 4x8 Sheet Metal Prices | FOB Price:US $1000-3000 / Ton | 904L Stainless Steel Sheet Price UK |
| 3mm Stainless Steel 904L Sheet Price | FOB Price:US $500-2500 / Ton | SS 904L Sheet Price Per Kg In Chennai |
| 16 Gauge Stainless Steel 904L Sheet Price | FOB Price:US $2400-3200 / Ton | 904L SS Sheet Price In Chennai |
| 2mm Stainless Steel 904L Sheet Price | FOB Price:US $1000-3000 / Metric Ton | 904L SS Sheet Price In Bangladesh |
| 18 Gauge Stainless Steel 904L Sheet Price | FOB Price:US $1140-3015 / Ton | 904L SS 904L Sheet Price Per Kg In Bangalore |
| SS 904L Electropolished Sheet Price | FOB Price:US $1500-5000 / Ton | 904L SS Sheet Price In Hyderabad |
| Perforated Stainless Steel 904L Sheet Price | FOB Price:US $1000-3000 / Ton | 904L SS Sheet Price Per Kg In Ahmedabad |
| SS 904L Plain Sheet Price | FOB Price:US $2.1-8.8 / Piece | 904L SS Sheet Price In Sri Lanka |
| SS 904L Shim Sheet Price | FOB Price:US $999-4000 / Ton | 904L SS Sheet Price In Coimbatore |
| Mirror Finish Stainless Steel 904L Sheet Price | FOB Price:US $1000-3500 / Ton | SS 904L Sheet Price In Delhi |
Stainless Steel Sheet Finish Types
| No.4 Finish | 8K Finish |
| Electro Polished Pla | Mirror Finish |
| No. 8 Finish | Brushed Finish |
| Patterned Finish | 2B Finish |
| No. 4 – Brushed finish | 2R (Bright Annealed) Finish |
| No. 2B – Matte finish | No.8 – Mirror finish |
| Polished Finishes | Mirror Polished |
| Thickness in. (mm) |
Width | |
| 36 (914.4) in. (mm) |
48 (1,219) in. (mm) |
|
| 0.017–0.030 (0.43–0.76) | 0.0015 (0.038) | 0.002 (0.051) |
| 0.031–0.041 (0.79–1.04) | 0.002 (0.051) | 0.003 (0.076) |
| 0.042–0.059 (1.1–1.5) | 0.003 (0.076) | 0.004 (0.10) |
| 0.060–0.073 (1.5–1.9) | 0.003 (0.076) | 0.0045 (0.11) |
| 0.074–0.084 (1.9–2.1) | 0.004 (0.10) | 0.0055 (0.14) |
| 0.085–0.099 (2.2–2.5) | 0.004 (0.10) | 0.006 (0.15) |
| 0.100–0.115 (2.5–2.9) | 0.005 (0.13) | 0.007 (0.18) |
| 0.116–0.131 (2.9–3.3) | 0.005 (0.13) | 0.0075 (0.19) |
| 0.132–0.146 (3.4–3.7) | 0.006 (0.15) | 0.009 (0.23) |
| 0.147–0.187 (3.7–4.7) | 0.007 (0.18) | 0.0105 (0.2 |
SS Sheet Weight Chart
| WEIGHT PER SS SHEETS : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | - | - | 1.44 |
| 0.20 | 3.20 | - | - | 1.60 |
| 0.22 | 3.52 | - | - | 1.76 |
| 0.24 | 3.84 | - | - | 1.92 |
| 0.27 | 4.32 | - | - | 2.16 |
| 0.28 | 4.48 | - | - | 2.24 |
| 0.32 | 5.12 | - | - | 2.56 |
| 0.38 | 6.08 | - | - | 3.04 |
| 0.44 | 7.04 | 11.00 | - | 3.52 |
| 0.50 | 8.00 | 12.50 | - | 4.00 |
| 0.56 | 8.96 | 14.00 | - | 4.48 |
| 0.63 | 10.08 | 15.75 | - | 5.04 |
| 0.75 | 12.00 | 18.75 | - | 6.00 |
| 0.88 | 14.08 | 22.00 | - | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Sheet Dimensions
No 2D Finish -No. 2B Finish - Annealed, Cold Rolled -No. 4 Finish -One Side Polished -No. 3 Finish - One Side Polished
| Width and Length, Gauge | per Sheet Est. Wt. | Lbs. per Sq Ft. Weight |
| 10GA (.135”) |
||
| 60 x 144* |
340.2 | 5.670 |
| 48 x 96 | 181.4 | |
| 36 x 120 | 170.1 | |
| 60 x 120* |
283.5 | |
| 48 x 120 | 226.8 | |
| 72 x 120* | 340.2 | |
| 7GA (.1874") |
||
| 48 x 120 | 314.8 | 7.871 |
| 48 x 96 | 251.9 | |
| 48 x 144 | 377.8 | |
| 12 Ga. (.105") | ||
| 36 x 120 | 132.3 | 4.410 |
| 36 x 96 | 105.8 | |
| 42 x 120 | 154.4 | |
| 72 x 144 | 317.5 | |
| 48 x 96 | 141.1 | |
| 36 x 144 | 158.8 | |
| 48 x 120 | 176.4 | |
| 60 x 96 | 176.4 | |
| 48 x 144 | 211.7 | |
| 60 x 144 | 264.6 | |
| 60 x 120 | 220.5 | |
| 72 x 120* | 264.6 | |
| 11 GA (.120") | ||
| 36 x 120 | 151.2 | 5.040 |
| 36 x 96 | 121.0 | |
| 36 x 144 | 181.4 | |
| 48 x 120 | 201.6 | |
| 48 x 96 | 161.3 | |
| 60 x 120 | 252.0 | |
| 48 x 144 | 241.9 | |
| 72 x 120* | 302.4 | |
| 60 x 144 | 302.4 | |
| 72 x 144* | 362.9 | |
| 14 Ga. (.075") | ||
| 36 x 96 | 75.60 | 3.150 |
| 30 x 120 | 78.75 | |
| 36 x 144 | 113.4 | |
| 36 x 120 | 94.50 | |
| 42 x 144 | 132.3 | |
| 48 x 96 | 100.8 | |
| 42 x 120 | 110.3 | |
| 72 x 144 | 226.8 | |
| 48 x 144 | 151.2 | |
| 48 x 120 | 126.0 | |
| 60 x 144 | 189.0 | |
| 60 x 120 | 157.5 | |
| 72 x 120 | 189.0 | |
| 13 Ga (.090") | ||
| 36 x 120 | 113.4 | 3.780 |
| 36 x 96 | 90.72 | |
| 48 x 120 | 151.2 | |
| 18 Ga. (.048") | ||
| 30 x 120 | 50.40 | 2.016 |
| 30 x 96 | 40.32 | |
| 36 x 120 | 60.48 | |
| 36 x 96 | 48.38 | |
| 42 x 120 | 70.56 | |
| 36 x 144 | 72.58 | |
| 48 x 120 | 80.64 | |
| 48 x 96 | 64.51 | |
| 60 x 120 | 100.8 | |
| 48 x 144 | 96.77 | |
| 60 x 144 | 121.0 | |
| 16 Ga. (.060") | ||
| 30 x 120 | 63.00 | 2.520 |
| 30 x 96 | 50.40 | |
| 36 x 120 | 75.60 | |
| 36 x 96 | 60.48 | |
| 42 x 120 | 88.20 | |
| 36 x 144 | 90.72 | |
| 48 x 120 | 100.8 | |
| 60 x 120 | 126.0 | |
| 48 x 96 | 80.64 | |
| 60 x 96 | 100.8 | |
| 48 x 144 | 121.0 | |
| 60 x 144 | 151.2 | |
| 20 Ga. (.036") | ||
| 30 x 120 | 37.80 | 1.512 |
| 30 x 96 | 30.24 | |
| 36 x 120 | 45.36 | |
| 36 x 96 | 36.29 | |
| 42 x 120 | 52.92 | |
| 36 x 144 | 54.43 | |
| 48 x 120 | 60.48 | |
| 48 x 96 | 48.38 | |
| 48 x 144 | 72.58 | |
| 26 Ga. (.018") | ||
| 30 x 120 | 18.90 | .7560 |
| 48 x 120 | 30.24 | |
| 36 x 120 | 22.68 | |
| 36 x 96 | 18.14 | |
| 30 x 96 | 15.12 | |
| 48 x 96 | 24.1 | |
| 19 Ga. (.042") | ||
| 36 x 120 | 52.92 | 1.764 |
| 24 Ga. (.024") | ||
| 30 x 120 | 25.20 | 1.008 |
| 30 x 96 | 20.16 | |
| 48 x 120 | 40.32 | |
| 36 x 120 | 30.24 | |
| 36 x 96 | 24.19 | |
| 48 x 96 | 32.26 | |
| 22 Ga. (.030") | ||
| 30 x 120 | 61.50 | 1.260 |
| 30 x 96 | 25.20 | |
| 36 x 120 | 37.80 | |
| 36 x 96 | 30.24 | |
| 48 x 96 | 40.32 | |
| 36 x 144 | 45.36 | |
| 48 x 120 | 50.40 | |
| 28 Ga. (.015") | ||
| 36 x 120 | 18.90 | .630 |
| 36 x 96 | 15.12 |
Steel Equivalent Grades Chart
| USA | France | Germany | Germany | Italy | Japan | Russia | Spain | Sweden | UK | European Union |
| AISI | AFNOR | DIN 17006 | W.N. 17007 | UNI | JIS | GOST | UNE | SIS | BSI | EURONORM |
| 904L | Z 12 CNDV 12-02 | 1.4939 | ||||||||
| X 20 CrNiSi 25 4 | 1.4821 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1510 °C (2750 °F) | Psi – 75,000 , MPa – 485 | Psi – 40,000 , MPa – 275 | 20 % |
| Searches Related to Sheet | Sheets We Stock & Supplied | Country / Cities |
| 904L Stainless Steel Sheet Suppliers | 16 Gauge 904L Stainless Steel Sheet | Canada, Philippines, Saudi Arabia, Vietnam |
| Stainless Steel 904L Sheet Thickness | 904L Stainless Steel Cold Rolled Sheet | South Korea, Switzerland, France, Denmark |
| Jindal SS 904L Sheet Weight Chart | 20 Gauge 904L Stainless Steel Sheet | United States, Nepal, Iran, Australia |
| 904L Stainless Steel Sheet Metal Gauge Chart | 3mm 904L Stainless Steel Sheet | Thailand, Sweden, Malaysia, Bangladesh |
| 904L Stainless Steel Sheet Thickness Chart | 904L Stainless Steel Shim Sheets | Bahrain, Lithuania, Kuwait, United Kingdom |
| 904L SS Sheet Thickness in MM | Electropolishing Stainless Steel 904L Sheets | Turkey, Ireland, Bolivia, Egypt |
| Mirror Finish Stainless Steel Sheet Price | 3mm Stainless Steel TP904L Sheet | Russia, Brazil, Hong Kong, United Arab Emirates |
| TP904L Stainless Steel Sheet 2mm Price | Stainless Steel Tp904L 2B Finish Sheets | Tibet, Greece, South Africa, Afghanistan |
| Jindal Steel Sheet Price Per Kg | SS 904L Plain Sheets | Sri Lanka, Italy, China, Germany |
| 2mm 904L Stainless Steel Sheet Price | 10 Gauge 904L Stainless Steel Sheet | Israel, Puerto Rico, Singapore, Mexico |
| TP904L Stainless Steel Weight Per Square Meter | Brushed Stainless Steel 904L Sheets | Oman, Belarus, Yemen, Namibia |
| 22 Gauge Stainless Steel 904L Sheet Price | ASME SA240m Steel 904L Cold Rolled Sheets | Qatar, Algeria, Libya, Nigeria |
| SS 904L Sheet Hsn Code | Stainless Steel 904L HR Sheets | Japan, Poland, Austria, Bhutan |
| S.S. 904L Sheet Price | 904L Stainless Steel Sheets Cut To Size | Nigeria, Portugal, Czech Republic, Croatia |
| 904L Stainless Steel Sheet Length | 904L Quality Stainless Steel Sheet | Jordan, Hungary, Finland, Spain | Jindal 904L Stainless Steel Sheet Dealer | Custom Stainless Steel 904L Sheets | Jaipur, Surat, Bangalore, Varanasi |
| 3mm 904L Stainless Steel Sheet Price | Stainless Steel 904L BA Finish Sheets | Kolkata, Pune, New Delhi, Ahmedabad |
| Stainless Steel 904L Sheet Weight Calculator | Stainless Steel 904L CR Sheets | Bengaluru, Mumbai, Chennai, Hyderabad |
| SS 904L Sheet Rate | 904L Stainless Steel Custom Length Sheet | Coimbatore, Kannur Nagpur Vadodara |
| SS 904L Sheet Density | SUS 904L Sheets #4 Finish | Noida, Thane, Agra, Bhagalpur |
Industrial Applications Examples
Automotive
Shipbuilding
Heavy Equipment
Framework structures
Crane booms
Wearing plates
Power Generation
Rail cars
Truck frames
Steel constructions
Aerospace
Machine building
Lifting and mobile equipment
Oil & Gas
Construction
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
Containers
Construction of bridges
Stone or iron chutes
Vehicles and transport equipment
Chemical
Pylons and other architectural structures
Our Products
Sheets
Stainless Steel 202 2B Matt PVC Sheets
Authorized Dealer of Jindal Stainless Steel Sheet
Quick Contact
