Plates

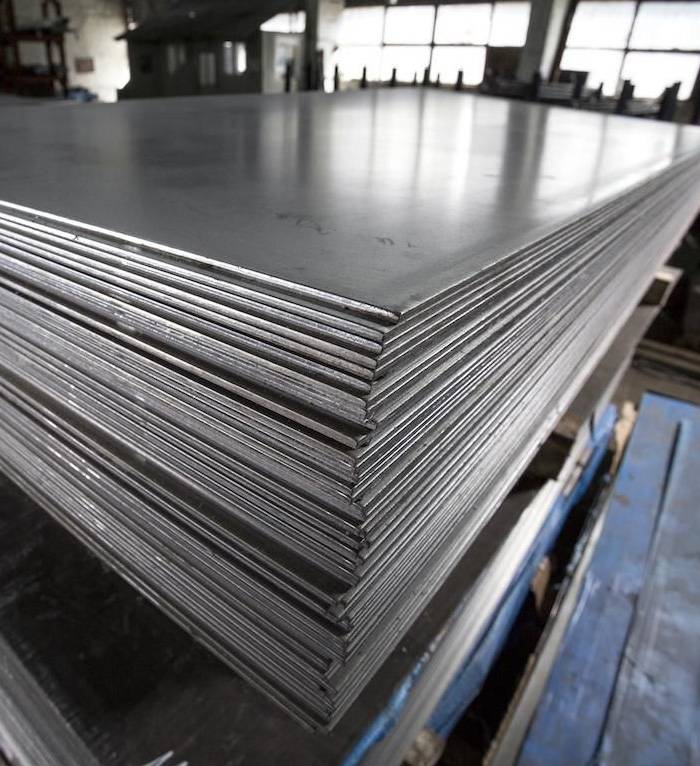

Stainless Steel 410 Plates

Stainless Steel 410 Plates

SS 410 Plate - SS 410S Plate Stockist - SS 410 Plate Supplier - ASTM A240 - SS 1.4000 - UNS S41008

About BSPL Stainless Steel 410S Plate

Bhavya Stainless Pvt Ltd is one of the trusted Manufacturers, distributors, and suppliers of premium grade 410 & 410S stainless steel plates.

What is a 410/410S grade SS plate?

Alloy 410/410S is a 12% chromium martensitic stainless steel plate that can be heat treated to obtain a wide range of mechanical properties. This addition of chromium element provides a significant increase in corrosion resistance in mildly corrosive environments where extreme strength and moderate heat resistance are required. 410S grade is a lower Carbon modification of 410S stainless steel, more easily welded but with low mechanical properties. Grade 410 plate contains a maximum of 0.015 percent carbon content whereas grade 410S contains a maximum of 0.08 percent carbon in their overall chemical composition. These grade 410 plates are magnetic in both the annealed and hardened conditions. In 410 grade plates, the chromium prevents surface corrosion by creating an inert film of chromium oxide.

Stainless Steel 410S Plate Price List, 410S SS Plate, SS 410S Plate, SS 410 Plates, Stainless Steel 410 Plate, 410 Stainless Steel Plate, Stainless Steel 410 Plate Supplier in Mumbai, India.

SS 410 Plate

What are the key properties of these grade 410/410S plates?

Stainless steel grade 410 plates have potentially high properties like excellent mechanical properties, yield strength, tensile strength, toughness, weld-ability, flexibility, and supreme strength. Also, grade 410S plates provide good corrosion resistance to air, water, and some other chemicals. These grade plates can be easily machined. Along with all these key features, these grade 410 plates are structurally stabilized resulting in high durability & reliability.

What are the important applications of grade 410/410S plates?

Some of the crucial applications of these grade 410/410S plates are the Railroad and road vehicles, Shipping containers, Industrial applications, Mining conveyors, petroleum refining, petrochemical processing, heat treatment valves, press plates, and heat exchangers, mineral processing, and mining machinery.

Bhavya Stainless Pvt Ltd (BSPL) consistently offers the finest stainless steel 410/410S grade plates and commercial products at cost-effective market prices to our diversified group of patrons.

SS 410S Chequered Plate, SS 410S Plate Rate Per Kg, 6mm Stainless Steel 410S Plate Price, SS 410S Plate Price, SS 410S Plate Weight, Stainless Steel 410S Plate Price, Stainless Steel 410S Plate Stockist in India.

Steel Plate Specifications

SS 410 Plate Specification

410S Plates Specifications ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911
410 Plates Dimension Standard MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
SS 410S Plates Thickness 4mm-100mm
410 SS Plates Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm etc
SS 410S Plates Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
SS 410 Plates Thickness 0.1, 0.2/0.3/0.5/0.6/0.7/0.8/0.9/1.0/1.5, 2.0/2.5/3.0/4.0/5.0/6.0/8.0/9/10/12/16/18/20/ 22/25/30 mm
International Standard of Stainless Steel 410S Plates ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness) of Stainless Steel 410 Plates EN 10258/ DIN 59381
EN 10151 ASME SA240 410S SS Plate
EN 10088 SA240 410 Plate
Finish of SS 410S Plates 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), Checkered, No.4, BA, 8K, satin, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Stainless Steel 410 Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

Types Of Plates

ASTM A240 SS TP410S Plate Types

Unit Weight Of Stainless Steel 410S Plate, 410S Grade Stainless Steel Plate, Density Of SS 410 Plate, 410 Stainless Steel Plate Thickness, Stainless Steel 410 Plate Exporter in India.

Material Equivalent Chart

1.4512 Stainless Steel Plate Equivalent Grades

STANDARD UNS WERKSTOFF NR. EN JIS
SS 410 S41000 1.4006 X12Cr13 SUS 410
SS 410S S41008 1.4000 _ _

Steel Plate Sizes Chart

410 SS Plate Standard Size Chart

SS 410S Plate Thickness SS 410 Plate Size SS 410S Plate Weight per Unit Area Estimated Weight per Plate
0.015 inches 0.381 mm 36 x 96 0.630 lbs/ft²3.07566 kg/m² 15.12 lbs6.84936 kg
0.015 inches 0.381 mm 36 x 120 0.630 lbs/ft²3.07566 kg/m² 18.90 lbs8.5617 kg
0.0178 inches 0.45212 mm 36 x 96 0.756 lbs/ft²3.690792 kg/m² 18.15 lbs8.22195 kg
0.0178 inches 0.45212 mm 36 x 120 0.756 lbs/ft²3.690792 kg/m² 22.68 lbs10.27404 kg
0.0178 inches 0.45212 mm 48 x 96 0.756 lbs/ft²3.690792 kg/m² 24.19 lbs10.95807 kg
0.0178 inches 0.45212 mm 48 x 120 0.756 lbs/ft²3.690792 kg/m² 30.24 lbs13.69872 kg
0.0235 inches 0.5969 mm 30 x 96 1.008 lbs/ft²4.921056 kg/m² 20.16 lbs9.13248 kg
0.0235 inches 0.5969 mm 30 x 120 1.008 lbs/ft²4.921056 kg/m² 25.20 lbs11.4156 kg
0.0235 inches 0.5969 mm 36 x 96 1.008 lbs/ft²4.921056 kg/m² 24.19 lbs10.95807 kg
0.0235 inches 0.5969 mm 36 x 120 1.008 lbs/ft²4.921056 kg/m² 30.24 lbs13.69872 kg
0.0235 inches 0.5969 mm 36 x 144 1.008 lbs/ft²4.921056 kg/m² 36.29 lbs16.43937 kg
0.0235 inches 0.5969 mm 48 x 96 1.008 lbs/ft²4.921056 kg/m² 32.26 lbs14.61378 kg
0.0235 inches 0.5969 mm 48 x 120 1.008 lbs/ft²4.921056 kg/m² 40.32 lbs18.26496 kg
0.0235 inches 0.5969 mm 48 x 144 1.008 lbs/ft²4.921056 kg/m² 48.39 lbs21.92067 kg
0.0291 inches 0.73914 mm 30 x 96 1.260 lbs/ft²6.15132 kg/m² 25.20 lbs11.4156 kg
0.0291 inches 0.73914 mm 30 x 120 1.260 lbs/ft²6.15132 kg/m² 31.50 lbs14.2695 kg
0.0291 inches 0.73914 mm 36 x 96 1.260 lbs/ft²6.15132 kg/m² 30.24 lbs13.69872 kg
0.0291 inches 0.73914 mm 36 x 120 1.260 lbs/ft²6.15132 kg/m² 37.80 lbs17.1234 kg
0.0291 inches 0.73914 mm 36 x 144 1.260 lbs/ft²6.15132 kg/m² 45.37 lbs20.55261 kg
0.0291 inches 0.73914 mm 48 x 96 1.260 lbs/ft²6.15132 kg/m² 40.32 lbs18.26496 kg
0.0291 inches 0.73914 mm 48 x 120 1.260 lbs/ft²6.15132 kg/m² 50.41 lbs22.83573 kg
0.0291 inches 0.73914 mm 48 x 144 1.260 lbs/ft²6.15132 kg/m² 60.49 lbs27.40197 kg
0.0355 inches 0.9017 mm 30 x 96 1.512 lbs/ft²7.381584 kg/m² 30.24 lbs13.69872 kg
0.0355 inches 0.9017 mm 30 x 120 1.512 lbs/ft²7.381584 kg/m² 37.80 lbs17.1234 kg
0.0355 inches 0.9017 mm 36 x 96 1.512 lbs/ft²7.381584 kg/m² 36.29 lbs16.43937 kg

Stainless Steel Plate Price Per Kg

SS 410S Plate Price Today

SS 410 Plate Price Per Kg FOB Price:US $1200-2000/ Ton Tp410S Stainless Steel Plate Price In India
SS 410 Plate Price List FOB Price:US $800-1500 / Ton 410S Stainless Steel Plate Price Philippines
410 Stainless Steel Plate Price FOB Price:US $1045-1686 / Ton SS 410S Plate Price In India
SS 410 Chequered Plate Price FOB Price:US $600-3100 / Ton 410S Stainless Steel Plate Price Malaysia
8mm Stainless Steel 410 Plate Price FOB Price:US $999-3500 / Ton 410S Stainless Steel Plate Price In UAE
SS 410 6mm Chequered Plate Price FOB Price:US $800-1200 / Ton 410S Stainless Steel Plate Price South Africa
410 SS Chequered Plate Price FOB Price:US $1000-3700 / Ton 410S Stainless Steel Plate Price In Saudi Arabia
410 SS Plate Rate FOB Price:US $1000-5500 / Ton 410S Stainless Steel Plate Prices Australia
6mm Stainless Steel 410 Plate Price FOB Price:US $550-2600 / Ton 410S SS Plate Price In Bangladesh
Mirror Finish SS 410 Plate Price FOB Price:US $980-4500 / Ton SS 410S Plate Price In Delhi
SS 410 Plain Plate Price FOB Price:US $1.1-5.8 / Piece 410S SS Plate Price In Sri Lanka
SS 410 Electropolished Plate Price FOB Price:US $1250-4000 / Ton 410S SS Plate Price In Chennai

SS 410S Plate Supplier in Mumbai, UNS S41000 Plate, Stainless Steel 410S Plate Supplier, SS 410S Plate Supplier in India, ASTM A240 Stainless Steel 410 Plates, SS 410 Plates Supplier, SS 410 Plates Stockist, SS 410 Plate Stockist in Mumbai.

ASME SA240 Stainless Steel 410S Plate, Stainless Steel 410 Plates Exporter in Mumbai, SS 1.4000 Plate, SS 410S Plate Stockist in India, Stainless Steel 410 Plate Supplier in India, SUS 410S Plates, Stainless Steel 410 Plate Stockist in Mumbai.

Stainless Steel Plate Finishes

410S Stainless Steel Plate Finishes Types

Surface Finish Definition Application
2B Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. Medical equipment, Food industry, Construction material, Kitchen utensils.
BA Those processed with bright heat treatment after cold rolling. Kitchen utensils, Electric equipment, Building construction.
NO.3 Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. Kitchen utensils, Building construction.
NO.4 Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. Kitchen utensils, Building construction, Medical equipment.
HL Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. Building Construction.
NO.1 The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. Chemical tank, pipe

Stainless Steel Plate Thickness Chart

SS 410 Plate Thickness

Thickness and Size in InchesEstimated Weight per Sq. Foot in Lbs.
3/16 ... 488.579
3/16 ... 608.579
3/16 ... 728.579
3/16 ... 848.579
3/16 ... 968.579
3/16 ... 1208.579
1/4 ... 4811.160
1/4 ... 6011.160
1/4 ... 7211.160
1/4 ... 8411.160
1/4 ... 9611.160
1/4 ... 12011.160
5/16 ... 4813.750
5/16 ... 6013.750
5/16 ... 7213.750
5/16 ... 8413.750
5/16 ... 9613.750
5/16 ... 12013.750
3/8 ... 4816.500
3/8 ... 6016.500
3/8 ... 7216.500
3/8 ... 8416.500
3/8 ... 9616.500
3/8 ... 12016.500
1/2 ... 4821.660
1/2 ... 6021.660
1/2 ... 7221.660
1/2 ... 8421.660
1/2 ... 9621.660
1/2 ... 12021.660
5/8 ... 9626.830
3/4 ... 9632.120
7/8 ... 9637.290
1 ... 6042.670
1 ... 9642.670
1-1/8 ... 9647.830
1-1/4 ... 9653.000
1-1/2 ... 9663.34
1-3/4 ... 9673.67
2 ... 9684.01
2-1/2 ... 96105.10
3 ... 96126.300
3-1/4 ... 96136.600
3-1/2 ... 96147.000
3-3/4 ... 96157.300
4 ... 96167.600

SS Plate Weight Chart In Kg

SS 410S Plate Weight Chart

  Thickness (mm)
0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.2 1.5 2.0 3.0
Grade Dimension (mm) Weight (kg/Plate)
410 1000 x 2000 4.76 6.34 7.93 9.52 11.1 12.7 14.3 15.9 19.0 23.8 31.7 47.6
1219 x 2438 (4’ x 8’) 7.07 9.43 11.8 14.1 16.5 18.9 21.2 23.6 28.3 35.4 47.1 70.7
1250 x 2500 7.43 9.91 12.4 14.9 17.3 19.8 22.3 24.8 29.7 37.2 49.6 74.3
1524 x 3048 (5’ x 10’) 11.1 14.7 18.4 22.1 25.8 29.5 33.2 36.8 44.2 55.3 73.3 110.5
TP410S 1000 x 2000 4.62 6.16 7.70 9.24 10.8 12.3 13.9 15.4 18.5 23.1 30.8 46.2
1219 x 2438 (4’ x 8’) 6.87 9.15 11.4 13.7 16.0 18.3 20.6 22.9 27.5 34.3 45.8 68.7
1250 x 2500 7.22 9.63 12.0 14.4 16.8 19.3 21.7 24.1 28.9 36.1 48.1 72.2

Plate Dimensions

UNS S41000 Stainless Steel Plate Dimensions

Plate Surface finish Thickness (mm) Width (max mm)
2B – Cold rolled, heat treated, pickled, skin passed Plate 0.25–8.0 2032
2D – Cold rolled, heat treated, pickled Plate 0.4–6.35 1524
2E – Cold rolled, heat treated, mechanically descaled plate 0.4–8.0 2032
2R – Cold rolled, bright annealed plate 0.25–3.5 1524
2H – Work hardened plate 0.4–6.35 1524
Polished, brushed plate 0.5–4.0 1524

ASTM A240 SS 410 Plate Imperial Dimensions

Plate Surface finish Gauge (in) Width (max in)
2B – Cold rolled, heat treated, pickled, skin passed Plate 10–24 72*
2D – Cold rolled, heat treated, pickled plate 12–24 60
BA Mexinox only 18–28 48
Polished Plate (not brushed) 11–24 60
Temper rolled Plate Mexinox only 13–29 48

Steel Equivalent Grades Chart

410S Stainless Steel Plate Equivalent Grades Chart

EU
EN
USA
-
Sweden
SS
France
AFNOR
England
BS
Poland
PN
Russia
GOST
X12Cr13 (1.4006) 410 2302 Z10C13 410S21 1H13 12KH13
15KH13L

SS 410 Chemical Composition

Stainless Steel 410S Plates Chemical Composition

Grade C Mn Si P S Cr Ni N
SS 410s 0.08 max 1.00 max 1.00 max 0.040 max 0.030 max 11.50 – 13.50 0.20 – 0.55 0.060
SS 410 0.15 max 1.00 max 1.00 max 0.04 max 0.03 max min: 11.5 max: 13.5 0.50 max

Stainless Steel 410 Mechanical Properties

Mechanical Properties Of Stainless Steel 410S Plate

Grade Tensile Strength ksi (MPa) min Yield Strength 0.2% offset ksi (MPa) min Elongation (% in 50mm) min Hardness (Brinell) MAX Hardness (Rockwell B) MAX
SS 410 65 (450) 30 (205) 20 217 96
SS 410S 444 290 33 % _ _

Stainless Steel Plate Stock

Searches & Ready Stock of 410 Stainless Steel Plate Supply in Below Countries

Searches Related to Plate Plates We Stock & Supplied Country / Cities
410S Stainless Steel Plate Suppliers 410 Stainless Steel High Performance Plate France, Switzerland, Denmark, South Korea
SS 410S Chequered Plate Weight Calculator 410 Stainless Steel Cold Rolled Plate United Kingdom, Bahrain, Lithuania, Kuwait
410S Stainless Steel Plate Thickness Tolerance 20 Gauge 410 Stainless Steel Plate Nepal, Iran, Australia, United States
Precision Ground 410S Stainless Steel Plate Extra-Heavy 410 Stainless Steel Plate Poland, Austria, Japan, Bhutan
Weight Of 410S Stainless Steel Plate 410 Stainless Steel Thik Plates Yemen, Belarus, Oman, Namibia
AISI 410S Stainless Steel Plate 10 Gauge 410 Stainless Steel Plate Singapore, Israel, Mexico, Puerto Rico
SS 410S Chequered Plate Weight Calculator Chequered Stainless Steel TP410 Plate Hong Kong, Brazil, United Arab Emirates, Russia
Plate Stainless Steel 410S Price Per Kg In India Today Stainless Steel Tp410 2B Finish Plates Algeria, Qatar, Nigeria, Libya
Unit Weight Of 410S SS Plate SS 410 Plain Plates Philippines, Vietnam, Canada, Saudi Arabia
410S Stainless Steel Plates Wholesale Electropolishing Stainless Steel 410 Plates Ireland, Egypt, Turkey, Bolivia
TP410S Steel Plate Thickness Chart In MM Pdf 410 Polished Stainless Steel Plate Czech Republic, Croatia, Portugal, Nigeria
410S SS Plate Standard Size Chart Pdf ASME SA240m Steel 410 Cold Rolled Plates Italy, Sri Lanka, Germany, China
SS 410S Plate Hsn Code Stainless Steel 410 HR Plates Sweden, Bangladesh, Thailand, Malaysia
410S SS Plate Weight Chart Pdf 410 Stainless Steel Plates Cut To Size Tibet, Afghanistan, Greece, South Africa
410S Stainless Steel Plate Weight Calculator 410 Quality Stainless Steel Plate Mumbai, Chennai, Bengaluru, Hyderabad
410S SS Plate Weight Chart Stainless Steel 410 CR Plates Bangalore, Surat, Jaipur, Varanasi
410S Stainless Steel Plate Suppliers Near Me Stainless Steel 410 BA Finish Plates Spain, Hungary, Jordan, Finland
410S Steel Plate Thickness Tolerance Chart Custom Stainless Steel 410 Plates Kolkata, Ahmedabad, New Delhi, Pune
SS 410S Plate Rate 410 Stainless Steel Custom Length Plate Kannur Nagpur, Coimbatore, Vadodara
SS 410S Plate Density SUS 410 Stainless Steel Plate 5mm Noida, Agra, Thane, Bhagalpur

Industrial Applications Examples

The Most Common Applications Of Stainless Steel 410S Plate

Aerospace

Anti drill plates such as security doors, shot blasting equipment and tumbling machine

Vehicles and transport equipment

Lifting and mobile equipment

Wearing plates

Power Generation

Crane booms

Rail cars

Framework structures

Pylons and other architectural structures

Machine building

Containers

Stone or iron chutes

Chemical

Shipbuilding

Truck frames

Construction of bridges

Heavy Equipment

Construction

Oil & Gas

Automotive

Steel constructions
